I don't know man, as much I disagree with hvpc in A LOT of things he seems to be a bit more knowledgeable than this, this is think tanker level of thinking man.
this is next level outdated chart i have seen on twitter..
0.75 NA lens group have developed back in 2018-19 and SMEE put this in 90nm machine then incorporate into 65nm machine later on. and 1.35 NA lens group successfully developed in 2021. havok also confirmed this.
-------------------------------------------------------------------------
Abstract

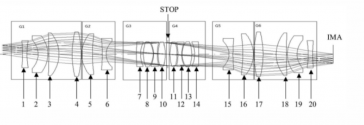

An adequate initial structure plays an important role in achieving a high-quality hyper-numerical-aperture (NA) catadioptric objective for an immersion lithography tool. A multi-step alternative grouping design method is innovated to achieve a feasible aspherical initial structure of the hyper-NA objective. The objective is first divided into three groups: the object-side group (G1), the middle group (G2), and the image-side group (G3), and then each group is designed separately. To guarantee the effective connection of these separate groups, G1 and G2 or G2 and G3 are connected as G12 or G32 on the object or image side with an aspherical structure. Then, through ray tracing in the forward path and the reverse path, G2 will be recalculated to a new aspherical structure, and the hybrid iterating process will be adopted to get a better G2 and to better connect the whole system. Finally, G1 and the new G2 and G3 are connected as a feasible aspherical initial structure of the hyper-NA catadioptric objective, which can be considered a good starting point for further optimization. A high-performance catadioptric objective with a hyper-NA of 1.35 was designed by the proposed method.
