Chang Lin's team from the School of Electronics at Peking University has made significant progress in the field of photonic chip clocks

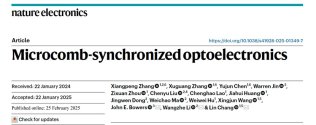

The research team of Chang Lin from the School of Electronics and the research team of Li Wangzhe from the Institute of Space Information, Chinese Academy of Sciences, published a research article titled "Microcomb-synchronized optoelectronics" online in Nature Electronics, realizing the application of photonic chip clocks in information systems for the first time in the world. This technology is based on mass-produced ultra-low-loss silicon nitride photonic chips, and generates high-precision, low-noise clock signals through optical frequency combs, breaking through the performance bottlenecks of traditional electronic chips in terms of clock bandwidth, energy consumption and noise. It provides an important solution for the development of future ultra-high-speed chips.



Please, Log in or Register to view URLs content!


OptimusLion

Junior Member
Registered Member
Niao Optoelectronics completed nearly 100 million yuan in A+ round of financing, leading the new era of industrialization of thin-film lithium niobate optical chips

The joint venture company Niao Optoelectronics announced the successful completion of nearly 100 million yuan in A+ round of financing. This round of financing was led by Jinpu Intelligent, a well-known domestic venture capital institution, followed by Guangzhou Industrial Investment and Wanlian Guangsheng, and the company's original shareholders Nanjing Innovation Investment Group and Yida Capital continued to make additional investments. It fully demonstrates the capital market's high recognition and firm confidence in its development potential. This round of financing focuses on the large-scale mass production of thin-film lithium niobate optical chips and the technical layout of cutting-edge fields such as the next-generation intelligent computing cluster optical interconnection, laser radar, and optical computing, further consolidating Niao Optoelectronics' global leading position in the field of thin-film lithium niobate optical chips




Please, Log in or Register to view URLs content!


tphuang

Lieutenant General
Staff member
Super Moderator
VIP Professional
Registered Member
Please, Log in or Register to view URLs content!


更新消息:全球最大碳化硅生产企业比亚迪半导体,其国内某工厂二期国产8英寸晶圆即将投产。


援引调研机构权威信息:国内最大碳化硅生产企业比亚迪半导体处于产能爬坡阶段,1200伏碳化硅产品批量出货。

BYD's factory has started the large SiC fab globally & a 8 inch wafer factory has started too (unclear if that's Sanan being referred to)

BYD's fab is increasing production right now, large amount of 1200V SiC product getting produced.


tokenanalyst

Brigadier
Registered Member

The construction of the Yuehao Semiconductor Display Equipment and Key Components Manufacturing Base Project started​


The groundbreaking ceremony for the Yuehao Semiconductor Display Equipment and Key Components Manufacturing Base Project was held in Chuzhou, Anhui. W

Yuehao Electronics is a high-end vacuum solution provider focusing on the semiconductor display field, providing first-class vacuum coating equipment, key components and technical services to global customers. In the past three years, the company's revenue has achieved an average annual growth of more than 50%. The company will take this groundbreaking ceremony as a starting point to accelerate project construction, strive to start production as soon as possible, promote the sustained and rapid development of the enterprise, and make positive contributions to local economic development.

The Yuehao Semiconductor Display Equipment and Key Components Manufacturing Base Project is located in Nanqiao Economic Development Zone, Chuzhou City. The first phase of the project covers an area of 124 acres, with a construction area of about 100,000 square meters. It is planned to build intelligent production workshops, R&D centers and supporting bases. After the project is completed, it can provide customers with domestically produced semiconductor display vacuum coating solutions at the international advanced level. The equipment product series includes: sputtering coating equipment for high-generation displays, mask coating equipment, roll-to-roll magnetron sputtering coating equipment, atomic layer deposition equipment, In-line magnetron optical coating equipment, and semiconductor advanced packaging TGV coating equipment.


Please, Log in or Register to view URLs content!
Please, Log in or Register to view URLs content!


tokenanalyst

Brigadier
Registered Member

A new project of high-purity and functional electronic chemicals in Anhui​


The project covers a total area of 106.9 mu, the main structure is built at one time, and the production equipment is invested in phases. It mainly includes 1 Class A production workshop, 1 Class C production workshop, supporting tank area, loading and unloading area, public works, sewage treatment, waste gas treatment and other facilities. After completion, the first phase will produce 85,000 tons of ultra-high purity general electronic chemicals and 25,000 tons of functional formula electronic chemicals annually, and produce 8,000 tons of 31% hydrogen peroxide, 2,000 tons of 49% hydrofluoric acid and 1,000 tons of 20% hydrochloric acid as by-products. The second phase will increase the annual production of 125,000 tons of ultra-high purity general electronic chemicals and 15,000 tons of functional formula electronic chemicals, and produce 8,000 tons of 31% hydrogen peroxide, 4,000 tons of 49% hydrofluoric acid and 1,000 tons of 20% hydrochloric acid as by-products.
