As long they stay on topic its does matter what they talk about.
Chinese semiconductor industry
- Thread starter Hendrik_2000
- Start date
- Status
Big packaging for high performance computing chips.
Shenghejing Microsemiconductor realizes mass production of large-size chip wafer-level full RDL substrateless packaging
Shenghejing Micro Semiconductor (Jiangyin) Co., Ltd. (hereinafter referred to as "Shenghejing Micro"), a leading advanced packaging and testing enterprise located in Jiangyin National High-tech Industrial Development Zone, Jiangsu Province, takes advantage of multi-layer fine line width RDL rewiring processing technology. , cooperated with Haowei Technology Co., Ltd. to realize the mass production of large-scale full RDL trace packaging structure of near-memory computing chips, marking the first successful implementation of wafer-level fan-out packaging instead of traditional substrate packaging in China, providing large-scale The dual choice of computing chip packaging structure also expands the supply chain capacity assurance capabilities of high-efficiency computing chip customers.
Cuckoo 2 Chip
The chip size of the packaged Cuckoo 2 reaches 800mm² , and the finished product size reaches 1600mm² . It adopts the 4-layer RDL rewiring process of Shenghejing Micro. Compared with traditional packaging, advanced packaging has the functional advantages of increasing the functional density of chips, shortening the interconnection length and performing system reconstruction. The new breakthrough in the platform's practice in the industrial field will help to further expand the application of advanced packaging in emerging markets such as artificial intelligence, blockchain, 3D space computing and 8K high-definition, and further satisfy the computing blowout in the coming metaverse era. need.
Starting with advanced 12-inch high-density bumping and rewiring processing, it is committed to providing world-class mid-section silicon wafer manufacturing and testing services, and continues to develop advanced 3D packaging (3D Packaging) processing business. Intellectual property's SmartPoser™ multi-chip integrated processing platform is making substantial progress in a growing number of industries.
At a high level a few years ago YMTC had the following foreign dependencies lithography, ion implantation, etching, and chemical and physical vapour deposition and chemical-mechanical planarisation. We know that (quoting external source)
“Naura Technology Group represents China’s hope to later challenge Applied Materials, which is based in Santa Clara, California, and makes a wide range of chip production equipment. Shanghai’s Advanced Micro-Fabrication Equipment (AMEC) is China’s version of Lam Research of the US, renowned for building essential etching machines. Tianjin-based Hwatsing Technology produces cutting-edge chemical-mechanical planarisation equipment and is set to break Applied Materials’ monopoly on the technology”. Guess it’s a question of much progress those three have made….
but these same people were all wrong frequently. the coming crash was china was supposed to happen 20 years ago.
what we see is that every major components of EUV are being developed and made progress.
Lam Research would be more like a combination between, ACMR shanghai, AMEC, Naura, Piotech.
I had been looking for ALE etching equipment in China for a while and looks like Naura has develop some equipment for that, dating back 2019. I guess R&D from AMEC in this area is probably no far behind.
NAURA successfully developed atomic layer etching equipment, adding a new talent to high-end equipment
Release time: 2019-03-20

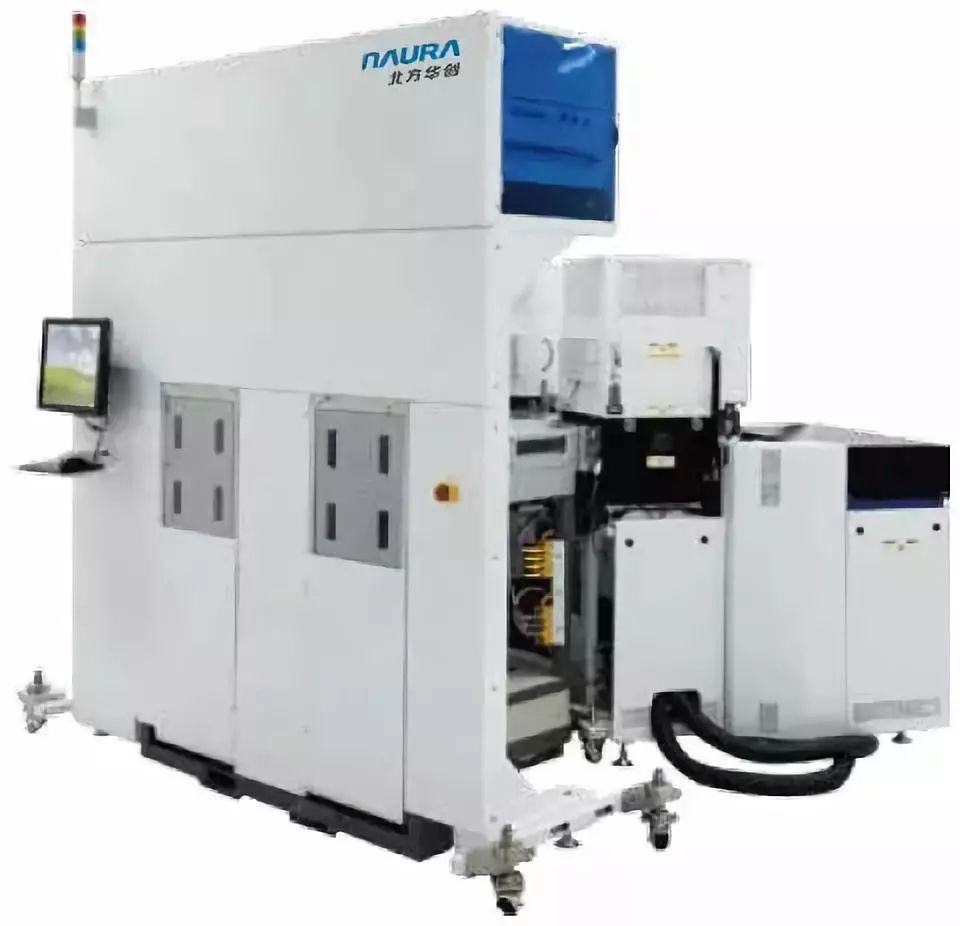

Recently, the Atomic Layer Etching (ALE) equipment independently developed by NAURA has successfully entered the production line of well-known customers in the industry, adding a new talent to domestic equipment in the fields of advanced manufacturing and high-end equipment.
Traditional plasma etching equipment will face a series of challenges such as etching damage, loading effect and control accuracy after entering the technology generation below 14nm and other etching fields with low damage requirements. The effective solution is atomic layer etching. technology. The atomic layer etching based on the cycle mode is different from the conventional plasma etching in principle. A typical layer-by-layer etching method is shown in the figure below. First, the combined gas is introduced into the etching chamber and adsorbed on the surface of the material to form a combined layer. This modification step is self-stopping, that is, the reaction stops as soon as the surface is saturated. Next, the excess bonding gas in the etching chamber is removed, and the etching gas is introduced. After the etching gas forms a plasma, the surface of the material is bombarded with ions to physically remove the previously generated bonding layer, thereby leaving the underlying unmodified surface. This removal process is still self-stopping because once the bond layer is completely removed, the process will also terminate and will not continue to remove the underlying material. After the above steps are completed, a layer of material on the surface can be precisely removed. The above process is repeated continuously, and the etching depth, etching rate, etc. can be precisely controlled by controlling the number of cycles.

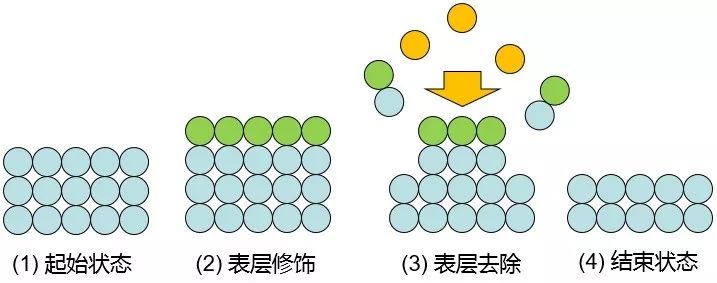

Principle of Atomic Layer Etching The atomic layer etching equipment developed by North Huachuang Microelectronics integrates key technologies such as precise control of plasma energy, ultra-fast gas switching, and synchronous control of radio frequency and gas. Through the repetition of surface modification and surface removal, the effect of layer-by-layer etching is achieved, and an etching process with precise controllability, good uniformity, small surface roughness, low damage and no load effect is realized. The equipment has successfully achieved client process validation.
Atomic layer etching technology is a representative of high-end technology in the field of integrated circuits and chip manufacturing. It can be widely used in the manufacture of integrated circuits, silicon-based semiconductor devices, III-V compound devices, graphene and other two-dimensional material devices.
NAURA will take this as an opportunity, based on customer needs, continue to innovate, boost industrial technological progress, and bring infinite possibilities to the industry.
NAURA successfully developed atomic layer etching equipment, adding a new talent to high-end equipment
Release time: 2019-03-20
Recently, the Atomic Layer Etching (ALE) equipment independently developed by NAURA has successfully entered the production line of well-known customers in the industry, adding a new talent to domestic equipment in the fields of advanced manufacturing and high-end equipment.
Traditional plasma etching equipment will face a series of challenges such as etching damage, loading effect and control accuracy after entering the technology generation below 14nm and other etching fields with low damage requirements. The effective solution is atomic layer etching. technology. The atomic layer etching based on the cycle mode is different from the conventional plasma etching in principle. A typical layer-by-layer etching method is shown in the figure below. First, the combined gas is introduced into the etching chamber and adsorbed on the surface of the material to form a combined layer. This modification step is self-stopping, that is, the reaction stops as soon as the surface is saturated. Next, the excess bonding gas in the etching chamber is removed, and the etching gas is introduced. After the etching gas forms a plasma, the surface of the material is bombarded with ions to physically remove the previously generated bonding layer, thereby leaving the underlying unmodified surface. This removal process is still self-stopping because once the bond layer is completely removed, the process will also terminate and will not continue to remove the underlying material. After the above steps are completed, a layer of material on the surface can be precisely removed. The above process is repeated continuously, and the etching depth, etching rate, etc. can be precisely controlled by controlling the number of cycles.
Principle of Atomic Layer Etching
Atomic layer etching technology is a representative of high-end technology in the field of integrated circuits and chip manufacturing. It can be widely used in the manufacture of integrated circuits, silicon-based semiconductor devices, III-V compound devices, graphene and other two-dimensional material devices.
NAURA will take this as an opportunity, based on customer needs, continue to innovate, boost industrial technological progress, and bring infinite possibilities to the industry.
