Kalec

Junior Member
Registered Member
Regular bidding information today about Project 017 from 41 Institution today

Some thoughts here:

1. IIRC it is the first time that bidding information publicly mentioned T800 carbon fiber on engine production, a strong indicator that it could be an ICBM project. Because China only uses T700 carbon fiber for commercial solid rockets right now, for example SD-3 and ZK-1A.

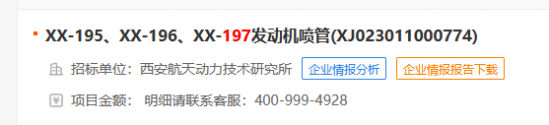

2. It mentioned two stages of engine shell for a "Three-in-one" test. I would guess it meant to be three stages combined, especially it subsequently mentioned a series of nozzles for XX-195, XX-196 and XX-197 engine. It looks like a three-stage ICBM to me, and should note 195, 196 & 197 engine first appeared on public bidding on 08/25/2022, which was almost half a year ago.



ACuriousPLAFan

Brigadier
Registered Member
Last edited:

Kalec

Junior Member
Registered Member
2. It mentioned two stages of engine shell for a "Three-in-one" test. I would guess it meant to be three stages combined, especially it subsequently mentioned a series of nozzles for XX-195, XX-196 and XX-197 engine.
I think I have figured out what exactly "Three-in-one" test means. It is actually a separation test between the missile's first stage and secodn stage.

For example, Ceres-1 Rocket completed its "three-in-one" test on 09/29/2019 and planned to launch its maiden flight earlier 2020. But everyone knows that Covid then hit in and everything was severely delayed and the actual flight date was 11/07/2020, one year after it completed such test.

Please, Log in or Register to view URLs content!

And some other interesting thing can be derived from the bidding information.
某017项目碳布扩张段成型技术研究
"Project 017 carbon expansion section (of nozzle) forming technology," another strong indicator that it is indeed either an ICBM or SLBM as it has an expandable nozzle made by carbon fiber, which none of current civilian solid rocket ever used in China.
某017项目T800一体化缠绕复合裙成型技术研究
"Project 017 T800 integrated winding composite skirt molding technology," have said it on the previous post, none of current civilian rocket ever used T800 on its engine in China.
某013项目滚控发动机批产喷管生产
“Project 013 roll control engine nozzle production" In my untrained eye, it is probably attitude control engine used by rockets when they are going to re-enter atmosphere or have already re-entered.

So if the engine follows the timeline of Ceres-1, it should conduct its maiden in the middle of 2023 as there is no more COVID delay.


Taiban

Junior Member
Registered Member
Missile Technology: Accelerating Challenges
The IISS Strategic Dossier Missile Technology: Accelerating Challenges examines the drivers, scope and consequences of the continuing development of ballistic and cruise missiles by the world’s most prominent users and producers.


Please, Log in or Register to view URLs content!
