[plawolf]

Not to be glib, but the funnels are about the least important thing incoming missiles can hit on a warship, not counting idling helicopters on deck.

What are funnels but glorified holes/tunnels to allow air in and out of the engine room? Shooting more holes in that is akin to shooting holes in cheese graters. It won’t look pretty afterwards, but it won’t really stop it doing the job either (assuming there are adequate internal grills and filters to contain fod, which should be pretty standard on warships).

The funnels were almost certainly deliberately moved closer than the spacing of the power plants to minimise the amount of ‘dead’ deck space usage to allow for more efficient placement of VLS and other core systems.

But the bottom line is that modern warships are not like WWII cannon brawlers packed with armour, pretty much any AShM hit will at a minimum mission kill any warship other than maybe carriers if they are very lucky.

That is not to say that damage control isn’t still vitally important, but that the objective of battle damage is about saving the ship and minimising lives lost rather than expecting warships to be able to remain in station and continue to fight on effectively after taking direct AShMs hits.



[silentlurker]

The degradation would depend on the amount of damage inflicted. Less air into the engines => less performance. Gas turbines are more vulnerable as they require a lot of air and don't handle debris injection very well. An explosion in the funnel has a good chance of taking out the gas turbines.

A big hole in the superstructure somehow reduces the air intake, brilliant



[Tam]

Last ditch resort? NSM does not even have a radar. It uses a combination of inertial, GPS and optical guidance. LRASM has all the guidance features of the NSM and adds a passive RF detector.

If optics are a last ditch resort, how do you explain then the fact that two of the newest anti-ship missiles in the US arsenal don't have active radar guidance?

Usage in littoral situations? Active radar guidance is troublesome in littoral environments due to reflections from rocks, beach, sea floor bottoms, islands, fish, etc,. All creating a natural decoy environment. Hence in littoral environments, even the use of ATGMs is considered, such as Hellfires on the LCS. This isn't new. Its old.

Do you even considered that back in 2006, China introduced YJ-7 or C-701, a small antiship missile that can be launched from small boats and helicopters, and that it has both an optical and a radar guided (mmwave seeker) version? You want to go back even earlier? There is the Penguin which does use optics and that goes back to 1972. Another early missile, back in the eighties, was the Japanese Type 80. It was infrared. So did the Type 93. Taiwan HFII has a combined active radar and infrared seeker. YJ-83 has added a variant that has a combination active radar and infrared seeker. Even the old P-15 Termit has an infrared version and by extension, some of the Chinese Silkworms had infrared.



[nlalyst]

Usage in littoral situations? Active radar guidance is troublesome in littoral environments due to reflections from rocks, beach, sea floor bottoms, islands, fish, etc,. All creating a natural decoy environment. Hence in littoral environments, even the use of ATGMs is considered, such as Hellfires on the LCS. This isn't new. Its old.

Do you even considered that back in 2006, China introduced YJ-7 or C-701, a small antiship missile that can be launched from small boats and helicopters, and that it has both an optical and a radar guided (mmwave seeker) version? You want to go back even earlier? There is the Penguin which does use optics and that goes back to 1972. Another early missile, back in the eighties, was the Japanese Type 80. It was infrared. So did the Type 93. Taiwan HFII has a combined active radar and infrared seeker. YJ-83 has added a variant that has a combination active radar and infrared seeker. Even the old P-15 Termit has an infrared version and by extension, some of the Chinese Silkworms had infrared.

Let's stick to the original point of contention. This is what you said:

An antiship missile will likely head where its return signal is at the strongest, and that's the part of the ship where it has the highest radar cross section. Clue, that isn't where the funnel is. Second clue, that's close to where the ECM is placed at. Third, that's why the ECM is placed there in the first place.

I pointed out how that doesn't apply to missiles with optical guidance. Whether and/or when optical or radio is better is besides the point. It's clear to everyone that the NSM/JSM/LRASM/Penguin/SLAM-ER(-ATA) will not aim for the highest RCS spot, nor the ECM. I think it should also be clear that they are capable and dangerous missiles.

NSM and LRASM can be programmed to impact pretty much any point on a ship, the funnel included. I wouldn't be surprised if SLAM-ER has a similar capability.

Even in the case of considering for anti-ship missiles, almost all modern and capable anti-ship missiles go for the waterline when they home in.

Except maybe for brahmos which still uses wide arc attack trajectories until home in and even then, it's sea skimming is of a much older generation compared to the already old C-802 era stuff.

Analyst, consider all this a free lesson in logic and military history.

What does "almost all" and "modern and capable" mean? How many exceptions am I allowed to find for that to still be true?

Here's a video of a NSM (a modern and capable missile?) test, where the missile impacts the superstructure:



[Tam]

Let's stick to the original point of contention. This is what you said:

I pointed out how that doesn't apply to missiles with optical guidance. Whether and/or when optical or radio is better is besides the point. It's clear to everyone that the NSM/JSM/LRASM/Penguin/SLAM-ER(-ATA) will not aim for the highest RCS spot, nor the ECM. I think it should also be clear that they are capable and dangerous missiles.

NSM and LRASM can be programmed to impact pretty much any point on a ship, the funnel included. I wouldn't be surprised if SLAM-ER has a similar capability.


What does "almost all" and "modern and capable" mean? How many exceptions am I allowed to find for that to still be true?

Here's a video of a NSM (a modern and capable missile?) test, where the missile impacts the superstructure:

You got an old ship where the superstructure is full of squared corners that will generate the highest RCS return. It can also target the superstructure because the sunlight has left the metal structure hot, making it look bright to a thermal camera.

NSM and LRASM are only programmed to hit a ship, not parts of. They use IIR to recognize the outline of a ship, not necessarily parts of a ship. If you want to program to hit parts of a ship, your missile database would exponentially explode in the sheer number of entries, and the time to query all these items would also take much much longer. Even if you did, the funnel is a bad choice for a target. An armor piercing missile can potentially just pass through the funnel when you want to sink the ship, not slow it down. Opening up the funnel isn't going to stop the ship.

There is a difference between IR guidance and IIR. IR guidance is heat seeking. These are missiles that will go after the hottest spot of the ship. IIR will identify the outline of a target by infrared camera, and match that to a database. The problem of both is the same countermeasures you use with aircraft. Flares can blind the camera and smoke will distort the ship outline.

Its not as if the 055 doesn't have layers of defense. Passives have long been used by navies for OTH targeting, only this time, with LRASM you are trying to use passives as a midcourse correction, which is also what some Russian missiles like Granit has used before. Traditionally, EMCON makes fleets difficult to target via OTH passive, and to add to that, if you have AESAs and solid state radars, you have LPI along with frequency agiles combined with pseudorandoms. To pull these signals apart from noise, you would need a server farm. Against thermal, you have management of your thermal contrast, hence the use of cooled funnels. Thermals are also more weather sensitive, water vapor does a good job of absorbing infrared, and you can get into a weather situation where both optical and thermal ranges are drastically cut. These two literally depend on their fair weather friendship, just as bad as microwave atmospheric ducting that OTH passives depend on.

The use of passives, IR and optics only serve to prevent the missile from being detected by ESM, and to be countered by ECM. It doesn't stop them from being targeted by an active radar, and have the missile blown away by gun or missile CIWS.

If your radar has detected and tracked the missile, but your ESM failed to receive any radar waveform from it, you can conclude that the antiship missile is a passive using thermal or optical in terminal, and your defenses can act on that assumption too.



[nlalyst]

NSM and LRASM are only programmed to hit a ship, not parts of. They use IIR to recognize the outline of a ship, not necessarily parts of a ship. If you want to program to hit parts of a ship, your missile database would exponentially explode in the sheer number of entries, and the time to query all these items would also take much much longer.

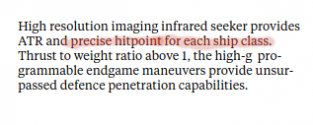

For starters, these missiles have autonomous target recognition (ATR). This requires a database and neural network algorithms. Second, the selection of a precise aim point is a declared capability of the NSM.

From:

Please, Log in or Register to view URLs content!

From

Please, Log in or Register to view URLs content!

:


From a YT video, basically paraphrasing the information from the brochures above.

Terminal accuracy of the NSM is said to be less than two feet from the aim point to the impact point, so specific systems and areas on a ship can be incorporated into these attack plans to achieve desired disabling results. Another selling point of the NSM is its ability to recognize a ship’s class through the seeker. This ability is called autonomous target recognition (ATR). It allows the missile to engage the correct aim point for maximum damage and provide intelligence to the launching ship.

Even if you did, the funnel is a bad choice for a target. An armor piercing missile can potentially just pass through the funnel when you want to sink the ship, not slow it down. Opening up the funnel isn't going to stop the ship.

Now this is the sort of counter argument I was expecting. And I would agree, that from a horizontal flight profile it would be difficult to ensure that most of the destructive force is delivered on that kind of target. A programmable fuse with proximity detection might be able to utilize most of the HE warhead potential, if not the missile body. Debris ending up in the GT is a strong possibility. A plunging trajectory would be superior, if available.

There is a difference between IR guidance and IIR ...

That's very interesting, but perhaps something we can continue in the missile guidance thread?



[Tam]

For starters, these missiles have autonomous target recognition (ATR). This requires a database and neural network algorithms. Second, the selection of a precise aim point is a declared capability of the NSM.

From:

Please, Log in or Register to view URLs content!

View attachment 70213
From

Please, Log in or Register to view URLs content!

:
View attachment 70214

From a YT video, basically paraphrasing the information from the brochures above.



Now this is the sort of counter argument I was expecting. And I would agree, that from a horizontal flight profile it would be difficult to ensure that most of the destructive force is delivered on that kind of target. A programmable fuse with proximity detection might be able to utilize most of the HE warhead potential, if not the missile body. Debris ending up in the GT is a strong possibility. A plunging trajectory would be superior, if available.

That's very interesting, but perhaps something we can continue in the missile guidance thread?

IIR works on outline contrast. Parts of a ship don't show up well as outline contrast. If you have a ship outline, aim point selection would simply be to aim at the hull of the ship's outline.



With digital imaging, the image is broken into pixels and the computer compares the contrast between the pixels. To make a long story short, you identify the ship based on its outline defined in a highly pixelated image. The purpose of aim point selection is to choose the point of the ship that will create as much damage to the ship as possible, and it is to make sure you hit the hull and the criticals. To aim at the superstructure, and risk the missile flying through it, is a fail, and the point of the feature is to avoid this.

Maximum damage isn't done by hitting the funnel, and with the 055 its not likely the GTs are directly below the funnel, but ducts are angled towards it. In addition to that, the actual funnels does not occupy the entire structure, only a part of it. The funnel are walled by an outer structure that is vented, where outside air cools the funnels and reduces the thermal contrast.





As for the funnel ducts, they can be angled, like this fan drawing so the GTs are not directly underneath the funnels.




Why do you not separate the funnels even further like in the Burke? One answer, RCS reduction.

Gaps in the ship is where the radio waves bounce back and forth, like between the two funnels, and between the superstructure and the first funnel.




The less complicated you are, the lower you can take your RCS. This is why this ship looks like this. The funnels and the superstructure is integrated into one mass.




You go eliminate the gapping between the two funnels and the funnel between the superstructure as a way of RCS reduction.




Illustration on this PDF at page 9 shows the IR suppression of the funnels.

Please, Log in or Register to view URLs content!



[lcloo]

Why aim your missile at the smoke funnel instead of the bridge, or the VLS and the missiles, or even better at the CIC if you know where it is.

This is getting boring.



[Blitzo]

My concern was really about the funnel spacing in my initial post. It was only after @ougoah insisted that missiles don't aim at smokestacks that I pointed out that funnel spacing is a proxy for MER spacing. I find it very difficult to discuss the original question when all the follow up arguments were essentially that it's a pointless concern because missiles don't aim at smoke stacks. Sorry, but I would really like to settle the funnel question first.

So you agree that larger separation of prime movers in general means better survivability? How about the smoke stacks? Does it matter or not?

If true, and the CCGs are the equipment in the in-between MERs compartment as shown in the CCTV illustrations, doesn't that make damage to that compartment potentially catastrophic as all 4 prime movers are tightly coupled there?

Yes, of course, there are design trade-offs. But that wasn't my concern/question. I pointed out that for its size, the Type 055 has main engine funnels unusually close to each other. I enumerated and measured 6 other combatants to demonstrate my point.

If I can rephrase: is the small spacing of funnels a liability or not when hit in that location? If it is, than it's a weak point. There could be other weak points (like the CCG compartment), I am not denying that. It might make more sense to aim at those other weak points. I am not denying that either. But one item at a time, please.

I have two main points as summaries of my replies.

1. Your original post should never have been about funnel spacing, but should have been about the location of the prime movers/MERs. On some ships the location of the funnels are a proxy of the prime movers/MERs. On some ships they are not. By making such a confident proclamation about how the funnel locations of the 055 are supposedly such an inherent and obvious detriment to its survivability rather than asking a nuanced question about where 055's prime movers/MERs are, makes you look unreasonable and silly.
So no, the funnels on a ship don't really matter -- you should be talking about the location of the prime movers/MERs instead.
A hit in the funnel doesn't necessarily mean the prime movers or MERs are compromised.

2. "Better" survivability is all relative. The configuration of 055's main engine room is actually not that dissimilar to some other more modern warships like Type 26, FREMM, F125, and even Zumwalt to a degree. The benefit of having a MER/prime mover set up closer together is that it is much more space efficient. The detriment is that it is more susceptible to damage if the damage is just in the right location. The extent to which the benefits and risks outweigh each other depends on the rest of the ship.



Your original question and post was barking up the wrong tree and looking at the design of a ship in a one dimensional point of view rather than looking at each ship as a whole and weighing their individual design trade offs.
It's not something that can be reduced to "one item at a time" when you're trying to make such overzealous generalizing statements.



[banjex]

^Yeah, can we get the f**k back on topic?!
