And show us the rear section
How so?
Four sounds like death.
Doesn't this indicate that this J-20 uses the TVC tech of the J-10B TVC? The nozzles look the same to me.
I think the best thing to do is to wait for further pictures.
Detailed interrogation of the drawing and of peoples cryptic statements is useful sometimes, but not very useful when we know there are clear pictures taken of the aircraft that are likely to emerge in the near future.

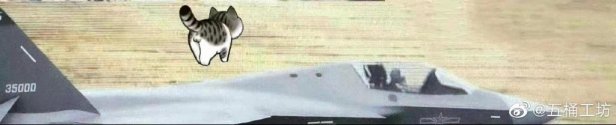

I think that picture is CGI, maybe try this instead if you want a comparison (it’s also treated but I think the silhouette is correct
Attachments
-
They move the double hexagon style sensors to the side of intake like in the two seater variant
Attachments
-
