H-20 bomber (with H-X, JH-XX)

ZeEa5KPul

ZeEa5KPul

Colonel
Registered Member
GTI said:
Yes, the balance of probability is trending towards a double-delta, and away from a “super duper extreme ultimate LO” flying wing, or whatever the latest made up terms are.
Click to expand...

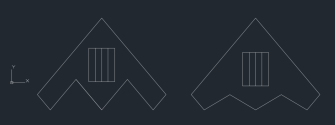

If anything the balance of probability is the spear tip planform @Blitzo proposed a while back. It's long enough to accommodate a large HCM, the planform is compatible with ELO, and it's capable of supersonic flight. The J-36 is cranked because of the maneuverability demands on a fighter and those are irrelevant to a bomber.

GTI

GTI

Junior Member
Registered Member
ZeEa5KPul said:
If anything the balance of probability is the spear tip planform @Blitzo proposed a while back. It's long enough to accommodate a large HCM, the planform is compatible with ELO, and it's capable of supersonic flight. The J-36 is cranked because of the maneuverability demands on a fighter and those are irrelevant to a bomber.
Click to expand...
True. I meant to say “away from traditional / pure flying wing”, really.

Arrow head / diamond, or double delta are the options IMO.

Nx4eu

Nx4eu

Junior Member
Registered Member
mack8 said:
These CGIs, could someone point me to them? I might have missed them especially if done before 12/24.
Click to expand...

PLA next/6th generation fighter thread

So if the hint is accurate, Wan Quan has already seen and photographed the actual aircraft several days ago. ... Based on what post? I think more likely Wan Quan saw it!
www.sinodefenceforum.com

Kind of basically looks like a combination of what we thought the J-XDS and the J-36 would look like in one plane.

M

mack8

Junior Member
Nx4eu said:

PLA next/6th generation fighter thread

So if the hint is accurate, Wan Quan has already seen and photographed the actual aircraft several days ago. ... Based on what post? I think more likely Wan Quan saw it!
www.sinodefenceforum.com

Kind of basically looks like a combination of what we thought the J-XDS and the J-36 would look like in one plane.
Click to expand...
Thanks, i definitely missed those at the time. Your drawing of the front fuselage at least was very close to the actual J-36, especially the canopy. I don't think anyone would have been disappointed if J-36 actually looked like your CGI overall. Some uncanny predictions there several days before the SAC and CAC birds were unveiled from people such as @GTI as well.

Nx4eu

Nx4eu

Junior Member
Registered Member
I'm unsure if I should post this in fan CG thread or here but I created a possible configuration using a slightly steeper wing sweep that would fit in the clearance area of the Neixiang Air Base underground hangar. Of course without much further details this is just mindless speculation. I used the B-21 planform as reference*

Blitzo

Blitzo

General
Staff member
Super Moderator
Registered Member
Nx4eu said:
I'm unsure if I should post this in fan CG thread or here but I created a possible configuration using a slightly steeper wing sweep that would fit in the clearance area of the Neixiang Air Base underground hangar. Of course without much further details this is just mindless speculation. I used the B-21 planform as reference*
View attachment 159624
View attachment 159626
Click to expand...

This is not fan made art for purposes of entertainment so I think this and others of a similar kind is fine, in the sense that it's part of discussion guided by rumours/relevant imagery and information etc.

It's a more refined and comprehensive version to some of the basic planform drawings myself and others did, and as long as people are aware of the context it's fine

GTI

GTI

Junior Member
Registered Member
Nx4eu said:
I'm unsure if I should post this in fan CG thread or here but I created a possible configuration using a slightly steeper wing sweep that would fit in the clearance area of the Neixiang Air Base underground hangar. Of course without much further details this is just mindless speculation. I used the B-21 planform as reference*
View attachment 159624
View attachment 159626
Click to expand...
Do we have any idea how long the missiles we’re expecting are?

E.g. do we need IWBs that fit the so-called (don’t know who by) “Beijing Heavy Hammer”?
