The most obvious part, the flight deck & the island are deferent from the earlier ship.

Yeah, dimensions as in max LxWxH. I know they did some reworking of the island to give more deck space.



[longmarch]

The angle is 14 from CCTV report, no change.



[backwindow]

View attachment 70817

On both ships, the upper end of the ski ramp is at bridge window level.

Angle of camera is different in those two photo(Judging from the horizon). It's had to say that the level is the same.



[Intrepid]

Angle of camera is different in those two photo(Judging from the horizon). It's had to say that the level is the same.

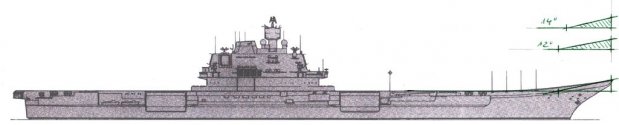

It doesn't matter whether the ramp is 12 or 14 degrees. The upper end is in the same place, it starts a little sooner or later.



With a steeper ramp more space to park aircraft behind the ramp is available. Allowable aircraft speed and weight will be less, if the ramp is steeper.



[by78]

Just a beautiful magazine scan...



[by78]

Oh yes, a change in angle is not visible but it results in a length-difference of 10m?? Are you trying to fool us?

Well, he's certainly fooled himself and made a fool of himself. An incredibly difficult feat to pull off, I might add.



[by78]

A larger (magazine scan) version of a previously shared image.



[Dante80]

Very cool angle to photograph. Many thanks for sharing the scan!



[Richard Santos]

A larger (magazine scan) version of a previously shared image.

Why does the ship show a conspicuous list to port?

also, the hull appear to have underwater blister or bulge on the port side. This has not been commented on AFAIK.



[H2O]

Why does the ship show a conspicuous list to port?

also, the hull appear to have underwater blister or bulge on the port side. This has not been commented on AFAIK.

Regarding the list, the ship might be making a hard right turn? I see the "blister" on the port side as an optical illusion. It's likely ballast water is being drained.
