Chinese semiconductor thread II

tokenanalyst

Brigadier
Registered Member

Xinying Display's MicroLED pilot line is completed and is expected to expand production and achieve mass production in the next two years​



"In October this year , the Micro LED pilot line of Xinying Display, a joint venture between TCL Huaxing and San'an , has been completed, and small-scale trial production is expected to be achieved in 2025. " Zhao Bin, vice president of TCL Huaxing and general manager of the R&D center, revealed at the 2024 TCL Global Technology Innovation Conference ( TIC2024 ).

In December 2020 , TCL Huaxing Optoelectronics and Quanzhou San'an jointly established Xinying Display, with a planned total investment of 300 million yuan, focusing on the massive transfer, bonding, detection and repair technologies required for Micro LED based on TFT driver backplane .​

Please, Log in or Register to view URLs content!


tokenanalyst

Brigadier
Registered Member

High-purity quartz sand purification, two latest breakthroughs!​

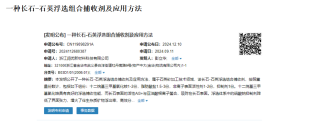

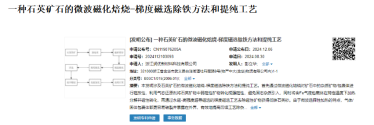

Two quartz purification technology-related patents of Zhejiang Runyou New Materials Co., Ltd., namely "A microwave magnetic roasting-gradient magnetic separation iron removal method and purification process for quartz ore" and "A feldspar -quartz flotation combined collector and application method". A microwave magnetization roasting-gradient magnetic separation iron removal method and purification process for quartz ore The invention relates to a microwave magnetization roasting-gradient magnetic separation iron removal method and purification process of quartz ore. First, impurity minerals/inclusions in the ore are magnetically modified by microwave magnetization roasting, and weak magnetic minerals in the quartz minerals are converted into strong magnetic minerals by using a gaseous reducing agent to avoid the introduction of solid impurities. At the same time, Fe-containing gas-liquid inclusions are heated and decomposed at a specific temperature and magnetically converted, and then the magnetic minerals are removed by a permanent magnet-high-intensity superconducting magnetic separation gradient magnetic separation process to obtain low-iron quartz sand. Due to the characteristics of microwave selective heating, gas/solid inclusions are more likely to break and be exposed to the outside world, which effectively improves the efficiency of subsequent impurity removal and purification. With the help of purification processes such as acid leaching, flotation, and chlorination roasting, high-purity quartz sand with Fe≤0.05ppm and SiO2≥99.998 % can be obtained . The method of the invention can remove ferromagnetism, weak magnetic impurities and inclusions in quartz sand in a targeted manner, and has an excellent iron removal effect, a simple and efficient process, and is more environmentally friendly.​


Please, Log in or Register to view URLs content!


tphuang

Lieutenant General
Staff member
Super Moderator
VIP Professional
Registered Member

High-purity quartz sand purification, two latest breakthroughs!​



Two quartz purification technology-related patents of Zhejiang Runyou New Materials Co., Ltd., namely "A microwave magnetic roasting-gradient magnetic separation iron removal method and purification process for quartz ore" and "A feldspar -quartz flotation combined collector and application method". A microwave magnetization roasting-gradient magnetic separation iron removal method and purification process for quartz ore The invention relates to a microwave magnetization roasting-gradient magnetic separation iron removal method and purification process of quartz ore. First, impurity minerals/inclusions in the ore are magnetically modified by microwave magnetization roasting, and weak magnetic minerals in the quartz minerals are converted into strong magnetic minerals by using a gaseous reducing agent to avoid the introduction of solid impurities. At the same time, Fe-containing gas-liquid inclusions are heated and decomposed at a specific temperature and magnetically converted, and then the magnetic minerals are removed by a permanent magnet-high-intensity superconducting magnetic separation gradient magnetic separation process to obtain low-iron quartz sand. Due to the characteristics of microwave selective heating, gas/solid inclusions are more likely to break and be exposed to the outside world, which effectively improves the efficiency of subsequent impurity removal and purification. With the help of purification processes such as acid leaching, flotation, and chlorination roasting, high-purity quartz sand with Fe≤0.05ppm and SiO2≥99.998 % can be obtained . The method of the invention can remove ferromagnetism, weak magnetic impurities and inclusions in quartz sand in a targeted manner, and has an excellent iron removal effect, a simple and efficient process, and is more environmentally friendly.​

View attachment 140837
View attachment 140838

Please, Log in or Register to view URLs content!
nice, so this looks like another 4N8 purity, which is good enough for the semiconductor crucibles, right?

For a lot of this, it seems like they just need to ramp up production now.


interestedseal

Junior Member
Registered Member
原位无线测温晶圆系统支持监测干式,浸入式和 EUV 光刻扫描仪
Please, Log in or Register to view URLs content!

In-Situ temperature sensor for duv and euv

Please, Log in or Register to view URLs content!

EUV spectrometer for spectral purity measurement

Please, Log in or Register to view URLs content!

Please, Log in or Register to view URLs content!

EUV actinic reticle inspection beamline at Shanghai Synchrotron Radiation Facility, CAS,IWAPS 2024
Very interesting analysis of Synchrotron based EUV mask defection inspection. 1st phase construction has already been completed and should enter trial usage soon. They plan to build a compact synchrotron specifically for euv mask inspection


tokenanalyst

Brigadier
Registered Member

Beijing sets up a 10 billion yuan new materials industry fund, attracting more than 900 high-tech enterprises​


New materials are an important support for new industrialization, a strategic emerging industry that the country is vigorously developing, and an important industrial direction for accelerating the development of new quality productivity and solidly promoting high-quality development. On December 10, a Beijing Youth Daily reporter followed the "New Quality Productivity Look at Beijing" theme promotion event into Shunyi District to learn about the development of Beijing's new materials companies. It is reported that Beijing's new materials innovation advantages remain leading, the innovation system continues to improve, more than 900 new materials high-tech enterprises have gathered, and the trend of industrial agglomeration has begun to emerge. This year, the "Beijing New Materials Industry Investment Fund" was approved by the municipal government for establishment, with an overall scale of 10 billion yuan, which will be invested in key areas such as electronic information materials, green energy materials, special and functional materials, and cutting-edge new materials.

Please, Log in or Register to view URLs content!


tokenanalyst

Brigadier
Registered Member

The scientific research team of Shanghai Institute of Technology has made important progress in the field of optical detection materials and devices!​


Recently, relying on high-level platforms such as the "Photodetection Materials and Devices" Shanghai High-level Local University Innovation Team and the Shanghai Photodetection Materials and Devices Engineering Technology Research Center, and with the support of the National Key R&D Program and the National Natural Science Foundation of China key projects, the team from the School of Materials Science and Engineering of Shanghai University of Applied Technology has cooperated with domestic and foreign institutions such as the University of Science and Technology of China Hangzhou Institute for Advanced Studies and the Massachusetts Institute of Technology (MIT) to make important progress in the heteroepitaxial growth of two-dimensional semiconductor materials.


Please, Log in or Register to view URLs content!


tokenanalyst

Brigadier
Registered Member

Total investment of 2.2 billion! BOE's photomask joint venture project starts shipping.​


It is understood that Chongqing Matt Optoelectronics Co., Ltd. was jointly funded by HOYA Co., Ltd. and BOE Group. It is the first large-scale photomask production equipment investment project in inland China by a photomask manufacturer in the world, with a total investment of 2.2 billion yuan, and plans to achieve full-load production in 2027. After full production, the annual production capacity is expected to reach about 2,250 photomask products, with an output value of 700 million yuan.

Chen Yanshun , Chairman of BOE Technology Group , said that BOE has successively implemented 8 major projects in Chongqing, helping Chongqing to accelerate its development into an important global semiconductor display industry cluster. BOE has a good history of cooperation and close relations with Japanese companies. In 2022, it joined hands with the world-renowned mask manufacturer Hoya to jointly invest in the Matt Optoelectronics photomask project, opening a new chapter of high-quality cooperation in the semiconductor display industry between China and Japan. It is another important milestone for BOE to promote industrial cooperation between China and Japan. The project focuses on the production of key components and photomasks in display panel manufacturing. It aims to build the world's number one photomask supplier by bringing together BOE and Hoya's top resources in the field of global display products and mask manufacturing, and jointly promote the high-quality development of the display industry and the local economy.

Please, Log in or Register to view URLs content!
