Eh. I would probably say unlikely but not ridiculous.
Frankly the only thing that a consumer cares about is performance. I doubt they care what the transistor density and critical dimension are.
Agreed. The only thing that matters for most consumers is performance and energy efficiency. As long as HUAWEI can get there I don’t think most consumers will care.
Liande Equipment: Pre-winning the bid for BOE AMOLED production line project worth RMB 179 million
Liande Equipment issued an announcement stating that the company has recently been pre-selected as the winner of the bid for BOE's Chongqing 6th generation AMOLED (flexible) production line project. The winning equipment includes: heat dissipation film attachment machine, polarizer attachment machine, and automatic bonding machine, with a winning price of 179 million yuan.
Liande Equipment is mainly engaged in the research and development, production, sales and service of new semiconductor display intelligent equipment, automotive intelligent cockpit system equipment, semiconductor packaging and testing equipment, and lithium battery equipment . In the semiconductor field, it mainly produces packaging and testing equipment for semiconductor back-end processes. The main products are COF flip-chip machines, semiconductor flip-chip machines, soft solder die bonders, eutectic die bonders, AOI inspection machines, lead frame laminating machines and other high-speed and high-precision semiconductor equipment. At present, eutectic, soft solder and other die bonders and QFN lead frame laminating, lead frame inspection and other equipment have been delivered to customers for mass production.
Liande Equipment is mainly engaged in the research and development, production, sales and service of new semiconductor display intelligent equipment, automotive intelligent cockpit system equipment, semiconductor packaging and testing equipment, and lithium battery equipment . In the semiconductor field, it mainly produces packaging and testing equipment for semiconductor back-end processes. The main products are COF flip-chip machines, semiconductor flip-chip machines, soft solder die bonders, eutectic die bonders, AOI inspection machines, lead frame laminating machines and other high-speed and high-precision semiconductor equipment. At present, eutectic, soft solder and other die bonders and QFN lead frame laminating, lead frame inspection and other equipment have been delivered to customers for mass production.
Xidian Hangzhou Research Institute was approved to build the province's key laboratory for analog integrated circuits
Recently, the Zhejiang Provincial Department of Science and Technology announced the results of the second batch of provincial key laboratories in 2023. The Provincial Key Laboratory of Analog Integrated Circuits, led by the Hangzhou Research Institute of Xidian University, was officially approved, and Hangzhou Silan Microelectronics Co., Ltd. participated in the establishment.
The provincial key laboratory of analog integrated circuits is oriented towards the national strategy of integrated circuits. It focuses on the difficult problems of analog integrated circuits such as high speed, high precision and high energy efficiency, and focuses on technical fields such as analog-to-digital converters and analog front ends, MEMS inertial sensors, intelligent photoelectric detectors, and power integrated chips. It focuses on basic application research on chips such as high-performance analog-to-digital converters and analog signal chains, integrated silicon-based sensors and systems, high-density power management and modules, breaks through key technologies such as highly digital analog circuits and analog intelligent computing, and establishes a large platform for innovation in high-performance analog integrated circuit technology.
CSIC Special Gases plans to build a project with an annual output of 170 tons of high-purity electronic gases
CSIC Special Gases issued an announcement stating that according to the company's high-purity electronic special gas development plan, in order to rapidly promote the development of the high-purity electronic gas industry chain, optimize and improve the production capacity layout, and enhance industry competitiveness, CSIC Special Gases plans to build an annual production of 170 tons of high-purity electronic gas project in Feixiang District, Handan City.
Not long ago, China Shipbuilding Special Gases pointed out in an institutional survey that electronic special gas products are mainly stored in specific packaging containers for delivery to customers. The packaging containers include steel cylinders, tube bundle containers, etc. Domestic transportation is mainly by road, while overseas transportation is mainly by sea.
CSSC Special Gas added 1,500 tons/year of tungsten hexafluoride production capacity in 2021. At present, the company's existing tungsten hexafluoride production capacity is 2,230 tons/year. The company's capacity layout is mainly based on the following considerations: First, it is optimistic about the increase in demand for tungsten hexafluoride products due to the improvement of integrated circuit process technology, especially memory chip technology; Second, it takes into account the cost-effectiveness of capital investment in capacity construction.
At the same time, based on the electrolytic fluorination process, CSIC Special Gases has developed and produced a series of trifluoromethanesulfonic acid products, such as lithium bis(trifluoromethanesulfonyl)imide, lithium trifluoromethanesulfonate, trifluoromethanesulfonic acid, trimethylsilyl trifluoromethanesulfonate, trifluoromethanesulfonic anhydride, etc., among which the production capacity of trifluoromethanesulfonic acid is 660 tons, and the maximum production capacity of lithium bis(trifluoromethanesulfonyl)imide is 600 tons.
Not long ago, China Shipbuilding Special Gases pointed out in an institutional survey that electronic special gas products are mainly stored in specific packaging containers for delivery to customers. The packaging containers include steel cylinders, tube bundle containers, etc. Domestic transportation is mainly by road, while overseas transportation is mainly by sea.
CSSC Special Gas added 1,500 tons/year of tungsten hexafluoride production capacity in 2021. At present, the company's existing tungsten hexafluoride production capacity is 2,230 tons/year. The company's capacity layout is mainly based on the following considerations: First, it is optimistic about the increase in demand for tungsten hexafluoride products due to the improvement of integrated circuit process technology, especially memory chip technology; Second, it takes into account the cost-effectiveness of capital investment in capacity construction.
At the same time, based on the electrolytic fluorination process, CSIC Special Gases has developed and produced a series of trifluoromethanesulfonic acid products, such as lithium bis(trifluoromethanesulfonyl)imide, lithium trifluoromethanesulfonate, trifluoromethanesulfonic acid, trimethylsilyl trifluoromethanesulfonate, trifluoromethanesulfonic anhydride, etc., among which the production capacity of trifluoromethanesulfonic acid is 660 tons, and the maximum production capacity of lithium bis(trifluoromethanesulfonyl)imide is 600 tons.
The Institute of Microelectronics has made progress in the research of new oxide thin film transistors.
Oxide random access memory has become the focus of international academia and industry due to its long retention time and advantages in three-dimensional stacking. Among them, In 2 O 3 -based thin film transistors have attracted much attention due to their high mobility. The instability of oxygen in In 2 O 3 directly affects the reliability of the device. To overcome this problem, traditional Ga or Zn doping requires a higher doping concentration, which improves the reliability of the device while reducing the mobility. Therefore, it is necessary to propose a newer oxide semiconductor material system to break through the mobility and reliability constraints of In 2 O 3 -based thin film transistors.
To address this problem, the research team of the High Frequency and High Voltage Center of the Institute of Microelectronics proposed a method of co-sputtering GeO 2 and In 2 O 3 , using the mechanism of GeO 2 actively consuming oxygen vacancies to prepare Ge-doped InGeO thin-film transistors. The researchers characterized the materials and conducted mobility and reliability tests, proving that the material system can greatly improve the reliability of the device without excessively losing the intrinsic mobility of In 2 O 3 , and experimentally verified the consumption effect of GeO 2 on oxygen vacancies. The "Variable Photocurrent Method (VPM)" test system built independently was used to characterize the regulation of In 2 O 3 deep energy level defects by Ge doping. Based on this mechanism, the researchers obtained InGeO thin-film transistors that broke through the constraints of mobility and reliability.
Zhonghuan Leading Semiconductor's 5.8 billion expansion project announced: Accelerating the expansion of large silicon wafers for integrated circuits
According to the public information, Zhonghuan Leading Semiconductor Technology Co., Ltd. (formerly Zhonghuan Leading Semiconductor Materials Co., Ltd., referred to as "Zhonghuan Leading") is located in Yixing Economic and Technological Development Zone, a national-level economic development zone. Since its establishment in December 2017, it has rapidly grown into a leading enterprise in the field of domestic semiconductor silicon wafers. The company focuses on the research and development, production and sales of silicon wafers, the core material of integrated circuits. Not only does it lead the domestic production capacity and revenue scale, but its product variety and technology level have also reached the top of the industry, with a global market share of about 4%.
At present, Zhonghuan's leading production base is equipped with advanced cutting and polishing plants and new 8-inch and 12-inch plants, with an annual production capacity of 9 million 8-inch polished wafers, 4.2 million 12-inch polished wafers, and millions of various epitaxial wafers. The expansion project announced this time is an important step in the company's strategic layout, with a planned investment of RMB 5.8 billion, focusing on the expansion of 12-inch semiconductor large silicon wafers, aiming to further enhance the company's competitiveness in the global market.
The project has a planned production capacity of 350,000 pieces/month (i.e. 4.2 million pieces/year) of 12-inch silicon wafers, including 100,000 polished wafers/month and 250,000 epitaxial wafers/month. The project will make full use of the existing plant for renovation and upgrading to achieve efficient and high-quality production. The implementation of the project will not only further consolidate Zhonghuan Leading's leading position in the field of semiconductor materials, but will also effectively promote the improvement and upgrading of my country's semiconductor industry chain and enhance the security and competitiveness of the overall industry.

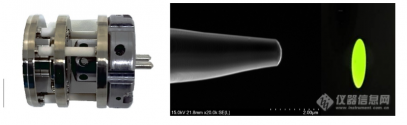

The core components of electron microscopes break the monopoly | Bozhong Instruments releases thermal field emission electron source.
Suzhou Bozhong Instrument Technology Co., Ltd. announced a major breakthrough in key technology and successfully developed a thermal field emission electron source. It also marks that China has achieved domestic substitution in thermal field emission electron sources, providing a strong boost to the independent development of high-end electron microscopy technology. Recently, Suzhou Bozhong Instrument Technology Co., Ltd. (hereinafter referred to as Bozhong Instrument) announced a major breakthrough in key technology and successfully developed a thermal field emission electron source . This product can be used in fields such as electron microscope equipment and electron beam lithography equipment , marking that China has achieved domestic substitution in thermal field emission electron sources, providing a strong boost to the independent development of high-end electron microscope technology . At the same time, as a common basic component of electron beams, it will also lay a solid foundation for the development of electron beam-related equipment, such as the development of electron beam lithography equipment . At present, the product has obtained relevant invention patents.
The tip curvature radius of the product can be precisely controlled between 400 and 900 nm, the angular current density is 200 to 500 uA/Sr, and under a high voltage of 200 kV, its brightness can reach 6.5x10^8 to 1.5x10^9 A/(c㎡ ·Sr), and it can work stably under a temperature environment of 1700 to 1850 K. Not only does it have performance comparable to that of the world's top products, it also has a huge advantage in cost performance. At present, the product has been sold as a mature product and can provide customized services.
Since its establishment, Bozhong Instruments has always adhered to the business philosophy of independent control, focusing on the research and development, production and sales of high-end equipment based on electron beams. It mainly sells transmission electron microscopes and their core components , such as Schottky electron sources, ultra-high stability power supplies (including high-voltage power supplies and constant current power supplies), high-precision temperature-controlled water chillers and other products, and provides overall solutions such as electron guns, high-voltage power supplies, and magnetic lenses . As the core component of the transmission electron microscope, the thermal field emission electron source has been developed since the company was founded. After more than three years of unremitting efforts, the team finally broke through the key technical difficulties and developed a thermal field emission electron source with stable performance and higher cost performance.
The tip curvature radius of the product can be precisely controlled between 400 and 900 nm, the angular current density is 200 to 500 uA/Sr, and under a high voltage of 200 kV, its brightness can reach 6.5x10^8 to 1.5x10^9 A/(c㎡ ·Sr), and it can work stably under a temperature environment of 1700 to 1850 K. Not only does it have performance comparable to that of the world's top products, it also has a huge advantage in cost performance. At present, the product has been sold as a mature product and can provide customized services.
Since its establishment, Bozhong Instruments has always adhered to the business philosophy of independent control, focusing on the research and development, production and sales of high-end equipment based on electron beams. It mainly sells transmission electron microscopes and their core components , such as Schottky electron sources, ultra-high stability power supplies (including high-voltage power supplies and constant current power supplies), high-precision temperature-controlled water chillers and other products, and provides overall solutions such as electron guns, high-voltage power supplies, and magnetic lenses . As the core component of the transmission electron microscope, the thermal field emission electron source has been developed since the company was founded. After more than three years of unremitting efforts, the team finally broke through the key technical difficulties and developed a thermal field emission electron source with stable performance and higher cost performance.
