One more very high-resolution photo of the launch...

(2999 x 1692)

now I'll be posting a series of pictures with captions translated by google, once I read them:

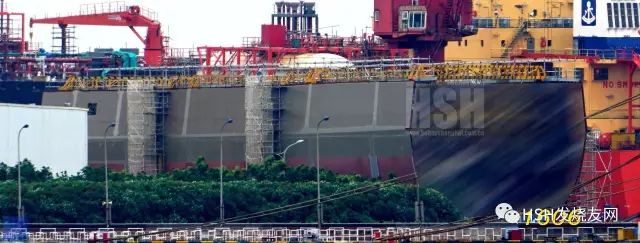

640

2016年4月舰体舯段(后)搭载
"In April 2016 the hull amids (after) carrying"

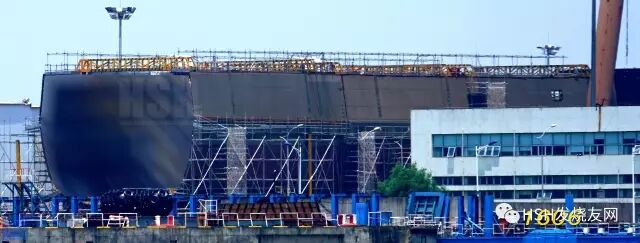

640

2016年5月舰体舯段合拢
"In May 2016, the hulls were closed"

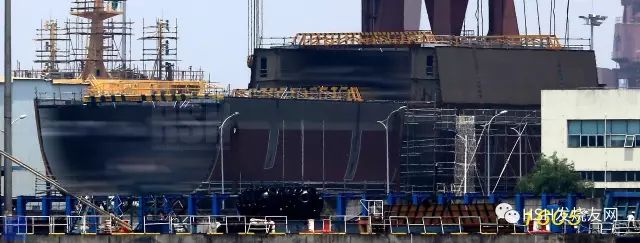

640

640

2016年6月第三段舰体分段合拢
"In June 1916 the third section of the hull segment closed"

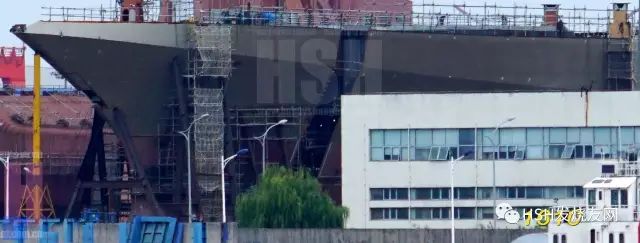

640

2016年9月舰艏分段即将合拢
"September 2016 ship bow section is about to close"

goes on below due to the limit on the number of pictures in a post:

continuation of the post right above:

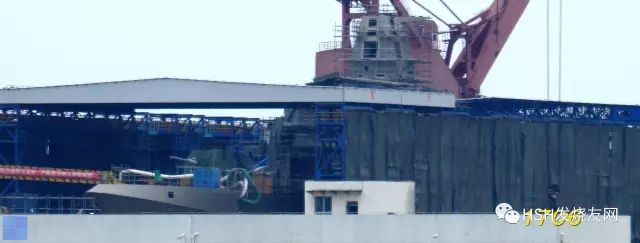

640

2016年10月舰首部尖舱分段出现
"In October 2016, the ship's forehead was subdivided"



640

2016年10月舰首尖舱分段即将合拢
"In October 2016 the ship's foreclosure segment is about to close"



640

2016年10月舰艉部平台分段搭载合拢
"In October 2016 the ship stern platform segmented load collapsed"



640

2016年11月全舰主体贯通
"November 2016 the whole ship through the main body"

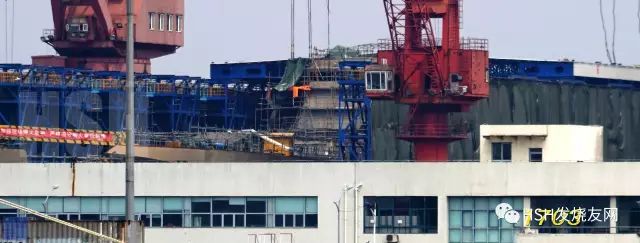

640

2017年2月后部上层建筑主体分段出现
"In February 2017 the rear of the main building sub-section appeared"

goes on below:

... the above series is coming to its end (LOL it's taking me longer than I thought) with:

640

2017年3月舰桥建筑主体出现
"March 2017 ship bridge construction of the main body"

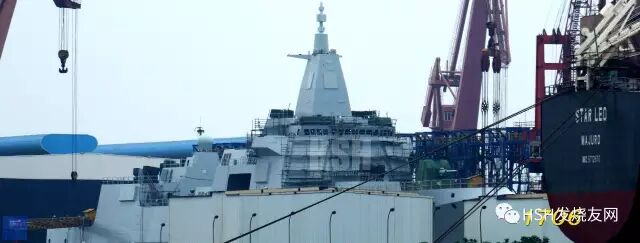

640

2017年4月多功能桅杆分段搭载
"April 2017 Multi-function mast section mounted"

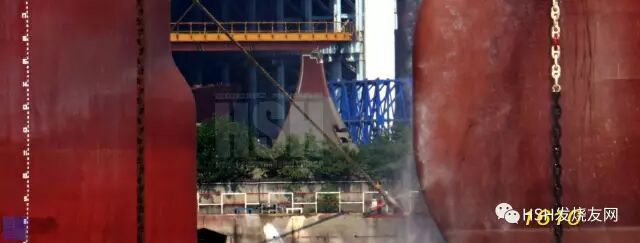

640

2017年6月初舰首主炮搭载
"In early June 2017 the ship's main gun carried"


640

2017年6月26日,即将下水的055首舰
"June 26, 2017, about to launch the 055 first ship"


640

2017年6月28日晨,即将下水的055首舰!
"2017 on June 28 morning, about to launch the 055 first ship!"


source:
【原创】守望江南——贺055驱逐舰下水
Please, Log in or Register to view URLs content!


taxiya

Brigadier
Registered Member
Here is a
Please, Log in or Register to view URLs content!
about 055.

I don't understand why it quoted Russian media about the specification. It is not like it can be hidden for long, especially number of VLS can not be hidden. Tonnage and lengths etc. maybe.

Anyway, here is the spec used.
Length: 183 meters
Beam: 22 meters
Draught: 8 meters (full or standard displacement?)
Displacement (standard): 9000 tonnes
Displacement (full): 12300 tonnes
Top speed: 32 knots
Crew: 310
VLS: 64 + 64

The two guests did not comment on the specifications. They are 滕建群 (Teng Jianqun) and ?卫东. I can not figure out the family name of the second guest. Teng Jianqun used to serve in the navy and now is a researcher in international and military affairs, receiving special allowance from the state counsel.

Last edited:

Totoro

Major
VIP Professional
I find it peculiar that the design goes to such lengths to lower RCS that it uses flush deck and it uses new design for rear decoy launcher, covering the usual round tubes....

yet in some regards no effort was taken to give other subsystems similar RCS reduction measures, ones that could have easily been applied. Like covering the base of the front CIWS with some plates (if not redoing the whole CIWS cover). That base is literally a RCS magification machine.

And building a shroud around the VLS well (something like on british Type 45) It would do wonders for RCS again, as those numerous lids and hinges can add quite a bit to RCS.


Max Demian

Junior Member
Registered Member
Here is a
Please, Log in or Register to view URLs content!
about 055.

I don't understand why it quoted Russian media about the specification. It is not like it can be hidden for long, especially number of VLS can not be hidden. Tonnage and lengths etc. maybe.

Anyway, here is the spec used.
Length: 183 meters
Beam: 22 meters
Draught: 8 meters (full or standard displacement?)
Displacement (standard): 9000 tonnes
Displacement (full): 12300 tonnes
Top speed: 32 knots
Crew: 310
VLS: 64 + 64

The two guests did not comment on the specifications. They are 滕建群 (Teng Jianqun) and ?卫东. I can not figure out the family name of the second guest. Teng Jianqun used to serve in the navy and now is a researcher in international and military affairs, receiving special allowance from the state counsel.

The quoted draft seems a tad low for standard displacement. The photos show the antifouling paint going up to about 9m draft at the bow. Although, if that includes the sonar bulb, then the mean draft is certainly less.
