Normally the early warning radar onboard would have been able to filter out most of the clutter using MTI processing. and separate fast moving target from it. The thing is that, Earth is not flat while missiles can fly low. The Moskva have Earth working against her. The following is coverage of her radar.
The legend is at lower right of the image. The green circle depicts coverage of her Top Pair radar against target flying at 7 m ASL, Yellow is 10 m while Orange is 40 m, Red 500 m and Blue is conventional aircraft altitude.
in my previous post i said that Neptun may share similar feature as Uran of being able to go sea-skimming as low as 4 m. and i argued against this as when she was attacked the sea state was high about 6-7 where wave might hit the missile. But that doesn't mean the missile can't be set to fly bit higher yet still offer lowest chance of detection. tho i dont really know if such setting exist.
Notice that for sea skimming target, her coverage is -Less- than 50 Km. The earliest opportunity to detect however would rise when the missile "pitch up" to search and lock on target before dive in again back to sea skimming phase. This might occur somewhere in 50 km.
View attachment 87131
The detection range, at least from what i gather from Janes for MR-500 is about 200 Km for fighter sized target. In S-band. Which correspond to RCS of 2 sqm. At the moment i have no model of Uran or Neptun but from my modeling on other type of conventional subsonic missile. RCS as low as 0.048 sqm can be expected in S-band for a small conventional axisymmetric airframe anti ship missile in frontal aspect. Which looks something like this in graphics.
View attachment 87134
Using 4th Root rules for that value of RCS and with the established figure for the Radar yielded detection range of 75.2 Km. But as demonstrated the coverage against sea skimming target is NOT that far. The earliest possible detection range would be less, maybe 50 or 40 Km and only for few seconds as the missile needs only short amount of time to get a lock and fix its INS.
Is that all ? No Her problem is not finished yet. It has another thing working against her namely Path propagation factor. Earth is not only flat but also have soils and waters, These materials AFFECTS propagation of radar wave, other than creating clutter the wave will also interact with the materials and creates interference. If you ever see Range-Height coverage diagram of a radar, you would see that it is lobing like this
View attachment 87135
Target flying at certain altitude may end up being in the "null" of the lobe and thus undetected. Modeling it is complex but there is simple model which takes account on a simple smooth reflective surface which similar as sea-water. The smoothness here is depending on the wavelength of the radar NOT what visually observed. The equation is as follows :
View attachment 87136
The modeling result in an path propagation factor which can then Multiplied by "free space" RCS calculated earlier to yield "Effective RCS" This effective RCS is the RCS of the target taking account of the path propagation factor.
Now let the flight altitude be 50 m and range is some 50 km, The altitude where Neptun probably climb to search for target.
View attachment 87137
The Effective RCS is 0.6 sqm Thus Moskva might get early detection of the missile at that range, But if the missile only takes like few seconds to get a lock and go back to sea skimming phase, the operator would probably considered the missile as false contact or bird.

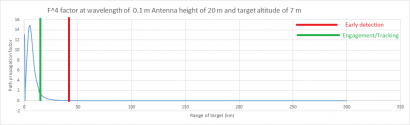

Once the missile got back into Sea skimming. It essentially undetectable due to Path propagation advantage, as depicted here.
View attachment 87138
Notice at 7 meter sea skimming. The missile's Effective RCS drops so much. She will not stand a chance to detect the missile.
This is why Surface scan radars are mostly in X or C band. as those bands have propagation advantages. It may still lost low altitude contact but can quickly regain it. Something of lower frequencies like S or L doesn't have. They're more suited for high-medium altitude area defense.
Hope my explanation make sense.
