Red tsunami said:
Can the elevator of 003 carry three planes like this?
Click to expand...
It's a matter of weight.

And it's also a matter of time. It takes a long time to position aircraft so precisely on the elevator. He went up and down twice in the same time.

But in a locked upper position you can safely use it as a parking space for such occupancy.



Typical elevator capacities of American aircraft carriers are:
CV 59-62; 66-67: 36 tons
CV 63-65: 40 tons
from CV 68: 48 tons

Last edited:
Rachmaninov

Rachmaninov

Junior Member
Registered Member
windsclouds2030 said:
The 3rd Chinese aircraft carrier, the country's first CATOBAR, dated October 23, 2021.

(Very) approximately:
- Overall length ≃ 314m
- Beam (bridge) ≃ 73m
- Surface of the flight deck ≃ 17,760m²

Image via Maxar Technologies

https://twitter.com/i/web/status/1462390343052107781
Click to expand...

Finally some clearer figures...

Separately according to horobeyo who referenced Google:

Overall length = 316m
Beam = 72.3m

https://twitter.com/i/web/status/1462295071777165315

by78

by78

General

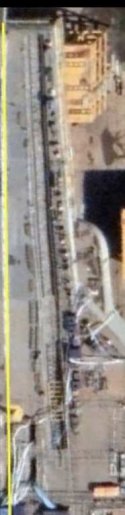

A high-resolution version of a recently shared image.



Zoomed in (cropped from the original):
