00X/004 future nuclear CATOBAR carrier thread

ACuriousPLAFan

Brigadier
Registered Member
Discussion continued in this thread to avoid derailing the original 6th-gen fighter thread.

On the topic of 004 - Yankee & Co. mentioned that Fujian was designed with the J-35 operations in mind before blueprint finalization sometime in the mid/late-2010s. However, once the need to operate 6th-gen manned fighters onboard Fujian arises, then adaptability modifications will be needed sometime in the (not so recent) future (i.e. similar to Liaoning during her latest MLU at Dalian to enable J-35 operations).

Speaking of the (concern regarding dimension and flight characteristics of) carrier-based 6th-gen manned fighters around and onboard 004, Yankee & Co. suggested that with the significant advancement of avionics, flight controls and automated landing systems (autoland), compromises involved will not need to be as big.

Some key points from Yankee & Co.'s podcast on what China's next aircraft carrier could be, simply-put:
- Fujian, despite deserving the title of "supercarrier", is too small to be sufficient. 004 and subsequent CVs definitely will be larger.
- There are sayings (source undetermined) where while a 150 thousand-ton supercarrier is likely to have slightly/moderately higher price tag than a 100 thousand-ton supercarrier, it is expected to have the combat effectiveness that is likely to be 1.8 or even 2 times that of the latter (namely, greater cost-effectiveness).
- Nuclear propulsion for future Chinese supercarriers is an unavoidable path (conventional propulsion has pretty much reached its celling for large-sized carrier propulsion with Fujian).
- The number of nuclear reactors onboard the Nimitz-class decided back in the 1960s (two A4Ws per hull) is more of a political (and financial) decision instead of an engineering/technical decision (as initially, they were meant to be powered by four A3Ws per hull).
- China can follow the US with regarding to the development of nuclear-powered supercarriers, but shouldn't do it "to the Tee".

Just managed to find the 切片 video on Bilibili with the said section of discussion (on the J-XDH and 004 CV(N)). The original Bilibili got deleted for some reason.

Please, Log in or Register to view URLs content!


Michaelsinodef

Senior Member
Registered Member
Honestly, even if the 150k ton is true (and not just some paper that's gonna get archived).

It's still unlikely that the PLAN will directly go to the 150k, instead of making say a 100k (maybe even 110 to 120k) nuclear one.

To test out things and stuff.

So like, the 150k tons is gonna be after 2030 (would even say likely 2040), and by then, variables and changes might result in the 150k tons plan being scrapped.


AndrewS

Brigadier
Registered Member
Honestly, even if the 150k ton is true (and not just some paper that's gonna get archived).

It's still unlikely that the PLAN will directly go to the 150k, instead of making say a 100k (maybe even 110 to 120k) nuclear one.

To test out things and stuff.

So like, the 150k tons is gonna be after 2030 (would even say likely 2040), and by then, variables and changes might result in the 150k tons plan being scrapped.

The next step in Chinese aircraft evolution is nuclear propulsion. They already have EM catapults installed on 2 different ships now.

Given that the Chinese don't have any legacy or sunk costs - they might as well go with the best clean sheet design.

So if it is a 150K ton aircraft carrier, there's no point going with an intermediate stage of an expensive one-off nuclear carrier design of 100k tons.

Remember they have skipped steam catapults and gone straight to EM catapults.

---

And in terms of physical dimensions, a 150K ton carrier isn't that much bigger than a 100k ton carrier.

Look at the Type-055 as an example, which is 50-60% larger in terms of displacement than the Type-052D.

But each external dimension (length x beam x "depth") is only 15% larger

---

And thinking about it, a 150k ton aircraft carrier would be comparable to a very large cruise ship in terms displacement, size and complexity.


AndrewS

Brigadier
Registered Member
Just speculating here.

Given that a US CAW has 48 F/A-18 or F-35, 5 E-2 and 7 Growlers - that's 60 fixed wing aircraft.

So if there is a 1.8-2x increase in combat effectiveness that implies a Chinese airwing on a 150k ton carrier as follows:

84-96 Fighters (J-15 or J-35)
9-10 KJ-600 AWACs
12-14 J-15 EW variant

So that's 108-120 fixed wing aircraft.

Would they really want to concentrate so many manned aircraft on a single ship?

---

But we're moving to a situation where accompanying Loyal Wingman UCAVs (initially 3-4? per fighter) will be the norm.
If you go with the current USN airwing which has 48 fighters - that implies 150-200 accompanying UCAVs.
A 100k ton carrier presumably doesn't have enough additional space for all these UCAVs.

So if China goes with a 150k ton aircraft carrier, I think the additional space would mainly be used for UCAVs.

Then you also have accompanying Type-076 which can also launch UCAVs with its EM catapult.

---

On a notional 150k ton carrier design, let's say it has external dimensions in the region of 15% larger than a 100k ton design.

These external dimensions aren't that much larger, so my guess is that it would follow the same design principles and deck layout as a 100k carrier. Call it 3-4 catapults, 3-4 aircraft elevators, 2 nuclear reactors.

Last edited:

Blitzo

Lieutenant General
Staff member
Super Moderator
Registered Member
Just speculating here.

Given that a US CAW has 48 F/A-18 or F-35, 5 E-2 and 7 Growlers - that's 60 fixed wing aircraft.

So if there is a 1.8-2x increase in combat effectiveness that implies a Chinese airwing on a 150k ton carrier as follows:

84-96 Fighters (J-15 or J-35)
9-10 KJ-600 AWACs
12-14 J-15 EW variant

So that's 108-120 fixed wing aircraft.

Would they really want to concentrate so many manned aircraft on a single ship?

---

But we're moving to a situation where accompanying Loyal Wingman UCAVs (initially 3-4? per fighter) will be the norm.
If you go with the current USN airwing which has 48 fighters - that implies 150-200 accompanying UCAVs.
A 100k ton carrier presumably doesn't have enough additional space for all these UCAVs.

So if China goes with a 150k ton aircraft carrier, I think the additional space would mainly be used for UCAVs.

Then you also have accompanying Type-076 which can also launch UCAVs with its EM catapult.

---

On a notional 150k ton carrier design, let's say it has external dimensions in the region of 15% larger than a 100k ton design.

These external dimensions aren't that much larger, so my guess is that it would follow the same design principles and deck layout as a 100k carrier. Call it 3-4 catapults, 3-4 aircraft elevators, 2 nuclear reactors.

There should be no basis to speculate about a 150,000 ton future carrier right now.

Any such discussions are beyond the scope of what present rumours allow for.


Just because a theoretical 150,000 ton carrier might have an increase in capability/cost ratio which is reasonable, does not mean that right now anyone yet expects a future Chinese carrier to have that displacement. If the rumours and discussion from usual Chinese sources change, then fine. But right now it's too early and should not be discussed as hypotheticals.


Wrought

Junior Member
Registered Member

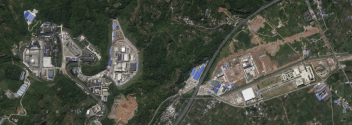

AP says there's a prototype reactor in Sichuan.

China has built a land-based prototype nuclear reactor for a large surface warship, in the clearest sign yet Beijing is advancing toward producing the country’s first nuclear-powered aircraft carrier, according to a new analysis of satellite imagery and Chinese government documents provided to The Associated Press.

There have long been rumors that China is planning to build a nuclear-powered aircraft carrier, but the research by the Middlebury Institute of International Studies in California is the first to confirm it is working on a nuclear-powered propulsion system for a carrier-sized surface warship.

Please, Log in or Register to view URLs content!


ACuriousPLAFan

Brigadier
Registered Member
Related.

That island superstructure mockup at Wuhan has been completely dismantled. The respective dates of which the following photos were taken (from top to bottom) are June 26, August 20 and September 7.

This directly contrasts with the previous instances where only modification works have been were conducted onto the already-existing mockup structure. Looks like changes to the island superstructure from Fujian to the 004 will be pretty massive.

Posted by @里海赛艇 on Weibo.

View attachment 136087

Related.

Satellite photo of said location taken on 3 November 2024. Posted by @Captain小潇 on Weibo.



Nx4eu

Junior Member
Registered Member
Related.

Satellite photo of said location taken on 3 November 2024. Posted by @Captain小潇 on Weibo.

View attachment 139103
I know that the size of this facility is probably in no way a credible way to accurately guess the size of the 004, but if that plane on the bottom were suppose to represent a J-15 sized plane, even being a bit conservative. This flight deck is absolutely humongous, ~400m long. The Catapults would also measure out to be around ~130m. Again Just something I find interesting, don't take it too seriously.

Last edited:

AndrewS

Brigadier
Registered Member
I know that the size of this facility is probably in no way a credible way to accurately guess the size of the 004, but if that plane on the bottom were suppose to represent a J-15 sized plane, even being a bit conservative. This flight deck is absolutely humongous, ~400m long. The Catapults would also measure out to be around ~130m. Again Just something I find interesting, don't take it too seriously.

A 400m carrier mockup would be 20% longer than the Ford-Class carriers.

And this length would be consistent with the rumours of the "optimal aircraft carrier design displacement" being 150k tons rather than the 100k tons for the US Navy.
