aksha said:

will sees those curves on the bengaluru class project 15B,construction of hulls has started started last year but only god knows when they will enter service

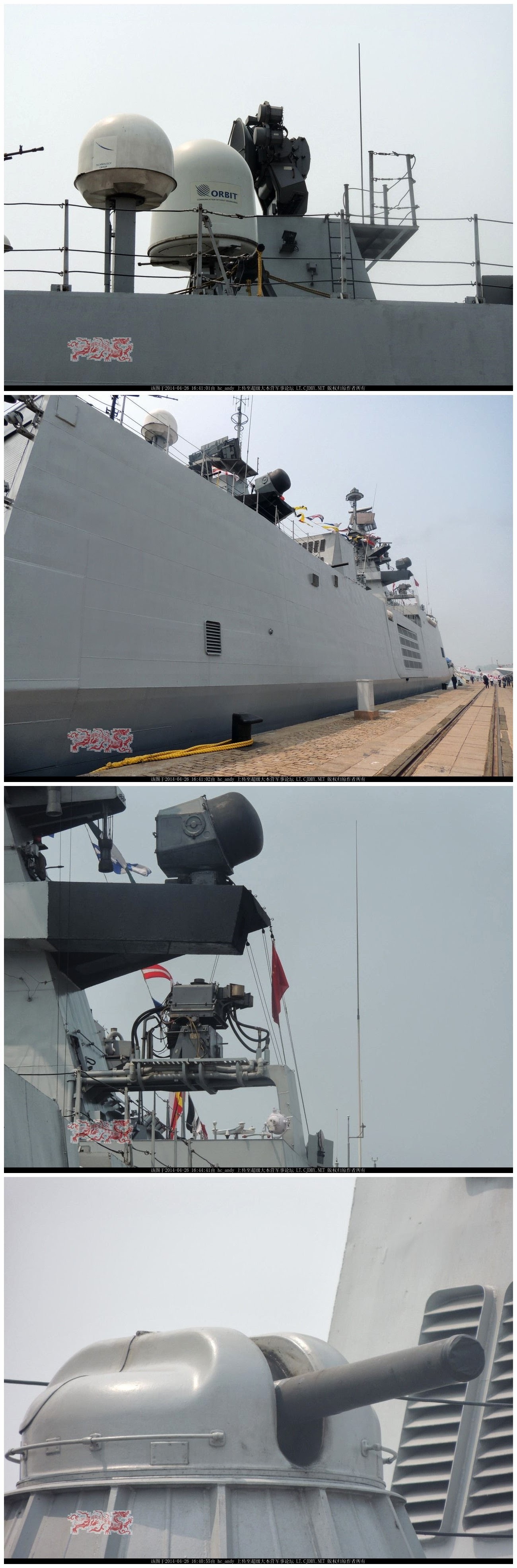

as for the huge TV style aerial radar i myself am confused they could have kept theEL/M-2238 STAR which they have equipped on the shivaliks here are the pics from a chines naval review that the shivalik attended early this year

Click to expand...

Product Details of L Band Surveillance Radar Rawl02mk-3 [lw08]
Bharat Electronics offer L Band surveillance radar RAWL02MK-3. The product L Band surveillance radar RAWL02MK-3 is long range L band surveillance radar for detection of air and surface targets. L Band surveillance radar RAWL02MK-3 is for early warning, air surveillance, L-band, coherent pulse compression radar. L Band surveillance radar RAWL02MK-3 is enabled with an Antenna with stabilized platform and TWT based transmitter. The salient features of the L Band surveillance radar RAWL02MK-3:
Pulse compression and FF chain for air and surface surveillance respectively
Better Clutter suppression
High ECM resistance
High availability and easy maintainability
VEX/Track processor provides target track data of air and surface targets.
Radar can provide upto 160 tracks to the C&C system
Radar instrumentation range is 270 Kms.
Technical Specifications ANTENNA Frequency Band D band 1200 - 1400 MHz Reflector Double Curved [Parabolic] Platform Stabilised Platform -- Hydraulic driven [a] Stab accuracy: ± 0.5° Stab limit: [1] ± 29° [Roll] [2] ± 10° [Pitch] not simultaneously Antenna Gain 30 dB Horizontal Beam Width 2.2° Vertical coverage Cosecant square upto 40° Polarisation Horizontal / Circular Side Lobe Level First - 26 dB Average - 35 dB Rotation Speed 7.5 / 15 Rpm Power Supply 440 V / 60 Hz / 3 phase Antenna Weight 3.1 tonnes with stabilised platform TRANSMITTER: Type TWT based Frequency Band 1200-1400 MHz 6 Preset Frequencies PRF 500 Hz /1000 Hz ±10 % Pulse length 34 µsec [OR] 66 µsec Freq Swept Pulse followed by 1 µsec fixed freq pulse Frequency agility Psuedo freq. Agility mode Freq agility mode [pulse to pulse] Peak Power 150 KW [TWT Output] Mean Power - 5 KW Sector Transmission Available External Synchronisation Not Possible RECEIVER: IF PC - 30 MHz ; non PC ? 45 MHz Pulse Width 0.6 µSec [Compressed] Noise Figure <4.5 dB MTI Improvement Factor 36 dB Videos PC MTI Video for air PC Lin Video targets Lin/Log - Fixed Freq for surface targets. Range Coverage Predicted range 220 Kmts for RCS = 1 Mt ² ; SW = 1 ; Pd = 50% At Prf = 500Hz ; Rpm = 7.5 257 Kmts for RCS = 2 Mt ² ; SW = 1 ; Pd = 50% at Prf = 500Hz ; Rpm = 7.5 218 Kmts for RCS = 2 Mt ² ; SW = 1 ; Pd = 50% at Prf = 1000Hz ; Rpm = 15 Minimum range 0.6 Nm VIDEO EXTRACTOR: Nf Tracks [maximum] 100 air + 60 Surface tracks Instrumented range [maximum] 270 Kms Target handling[max speed for air track] Mach 4 Target handling [max speed for surf track] 100 knots Environmental Data: Temperature A] During normal operation 0°C to 70° C b] During storage and transport -30° C to + 85° c Relative Humidity 95% Corrosion Materials used are treated / protected against corrosion Interfaces The system can be interfaced with various systems viz., Displays I, II , III, RAWS-03, EMCCA, ESM ,MISU,VDU ECCM Features Burst to burst or pulse to pulse Freq. Agility staggered PRF status Frequency Selection over a wide Bandwidth Power Requirement Stabilized antenna system 380/440 V, 50 Hz, 3 Ph - 3 KVA average [7.5 rpm] 7.5KVA [15 rpm and max. Wind load] Transmitter Cabinet 115 V, 50 Hz, 1 ph. - 0.5 KVA anti-condensation heating 440 V, 50 Hz, 3 ph - 28 KVA Receiver Cabinet 115 V, 50 Hz, 1 ph.- 0.15 KVA anti-condensation heating 115 V, 50 Hz, 3 ph.-1.5 KVA 115 V, 400 Hz, 1 ph. - 0.15 KVA Cooling cabinet 440 V, 50 Hz, 3 ph. - 5 KVA Hydraulic power unit 115 V, 50 Hz, 1 ph. -0.2 KVA anti- condensation heating 380/440 V, 602 Hz, 3 ph.- 8.5 KVA average [normal conditions] 22.5KVA maximum [extreme cold / stormy conditions]115 V, 50 Hz, 3 ph.- 0.6 KVA

Please, Log in or Register to view URLs content!

Click to expand...

The P-15A DDG does have only 32 VLS cells for the Barak-2 LR-SAM—twin eight-cell mounts fore & another identical set aft. BUT, there are another 32 cannister-encased missiles as RELOADS kept internally. 64 Barak-2 LR-SAMs on-board. Cannister-encased vertically-launched missiles held internally in storage can easily be brought to ready-to-fire position once the empty cannisters are removed while at-sea. For this, the heavy fleet replenishment vessels (which also serve as refuelling tankers) have purpose-built on-board cranes to assist such reloadings. On board aircraft carriers like INS Vikramaditya & IAC-1, such cranes are available as well. Fleet replenishment vessels will always accompany any IN battle group.

Click to expand...

Navy's Guns Sink with TenderThe Navy’s plans to procure weapons for future warships are at risk of running aground. The force urgently needs 127mm guns, but its tender for 13 guns estimated at Rs 1,500 crore finds itself in rough waters. To start with, there were only two vendors for the guns globally. Now, while one has walked out of the tender, the other is facing uncertainty due to its parent company’s woes.

Sources said this could delay two key shipbuilding projects—the seven follow-on Shivalik-class frigates and six Delhi-class destroyers—that are in various stages of construction in domestic shipyards.

While the UK’s BAE Systems has refused to bid, Italian Oto Melara, whose parent company Finmeccanica is facing corruption probes back home, is keen on participating in the tender.

Finmeccanica is also the parent firm of helicopter manufacturer AgustaWestland, which is facing an Indian probe over allegations of bribes in a Rs 3,727-crore deal for supplying AW-101 VVIP transport choppers to the Indian Air Force.

This has presented the Navy with a fait accompli. Its tender is now on deathbed.

The BAE’s nonparticipation leaves only one vendor in the fray and that is a strict no-no under the present Defence Procurement Procedure (DPP). The DPP stipulates that there has to be a competition (at least two competing firms) before the contract is awarded to the lowest bidder.

The Navy is facing this situation also because the Defence Research and Development Organisation (DRDO) has not been able to design and develop a 127mm/5-inch gun indigenously.

“It is a pitiable state of affairs. We have not been able to develop an indigenous gun. Now, the search for a foreign gun too is virtually dead. In a single vendor situation, the tender is a nonstarter,” a Naval officer said.

While a representative of Oto Melara in India confirmed their participation in the tender, a BAE representative too confirmed their decision not to participate.

The Defence Ministry had issued the tender (Request for Proposals or RFP in defence parlance) to the two firms on November 12, 2013, and the companies were given time till March 2014 to respond.

Under the programme, India would buy two guns directly from the winner of the tender, while 11 more guns would be manufactured by Bharat Heavy Electricals Limited (BHEL) through transfer of technology from the global Original Equipment Manufacturer (OEM) that wins the contract.

But within a fortnight, BAE Systems wrote back saying the company does not intend submitting a proposal. “After conducting a detailed assessment of the RFP, the company has concluded that key aspects present the bidder with a disproportionate level of risk,” BAE Systems said in a response.

By “disproportionate risk” BAE Systems meant that the Defence Ministry was placing the onus of performance of BHEL in executing the contract with quality guns and timely deliveries on the foreign OEM, which would have no control over the functioning of the PSU. Non-performance by the PSU would entail penalties being imposed on the OEM.

“This risk would involve costs and we are sure the Indian government understands this,” a BAE Systems representative said. BAE Systems noted that it has vast experience in producing the Mk45 127mm/5-inch 62-calibre Mod4 gun and in establishing in-country manufacturing programmes. It claimed the gun matched the Indian Navy’s needs. The gun, it said, is in service with the naval fleets of Australia, Denmark, Greece, Japan, Republic of Korea, New Zealand, Spain, Republic of China (Taiwan), Thailand and Turkey.

The Oto Melara representative, in response to queries, said the company would reply to the Defence Ministry’s RFP by March 2014.

Please, Log in or Register to view URLs content!

Click to expand...

so they will have to persist with 76mm guns till a competitor is selected for otto malera,and 2 candidates if finemeca is banned,the options are american or russian 127mm guns

Click to expand...

the russian ak 130, as far as i know the 76mm guns will be replace as soon as 127 mm gun is chosen and replaced during a refit

Click to expand...

The P-15A DDG does have only 32 VLS cells for the Barak-2 LR-SAM—twin eight-cell mounts fore & another identical set aft. BUT, there are another 32 cannister-encased missiles as RELOADS kept internally. 64 Barak-2 LR-SAMs on-board. Cannister-encased vertically-launched missiles held internally in storage can easily be brought to ready-to-fire position once the empty cannisters are removed while at-sea. For this, the heavy fleet replenishment vessels (which also serve as refuelling tankers) have purpose-built on-board cranes to assist such reloadings. On board aircraft carriers like INS Vikramaditya & IAC-1, such cranes are available as well. Fleet replenishment vessels will always accompany any IN battle group.

Click to expand...

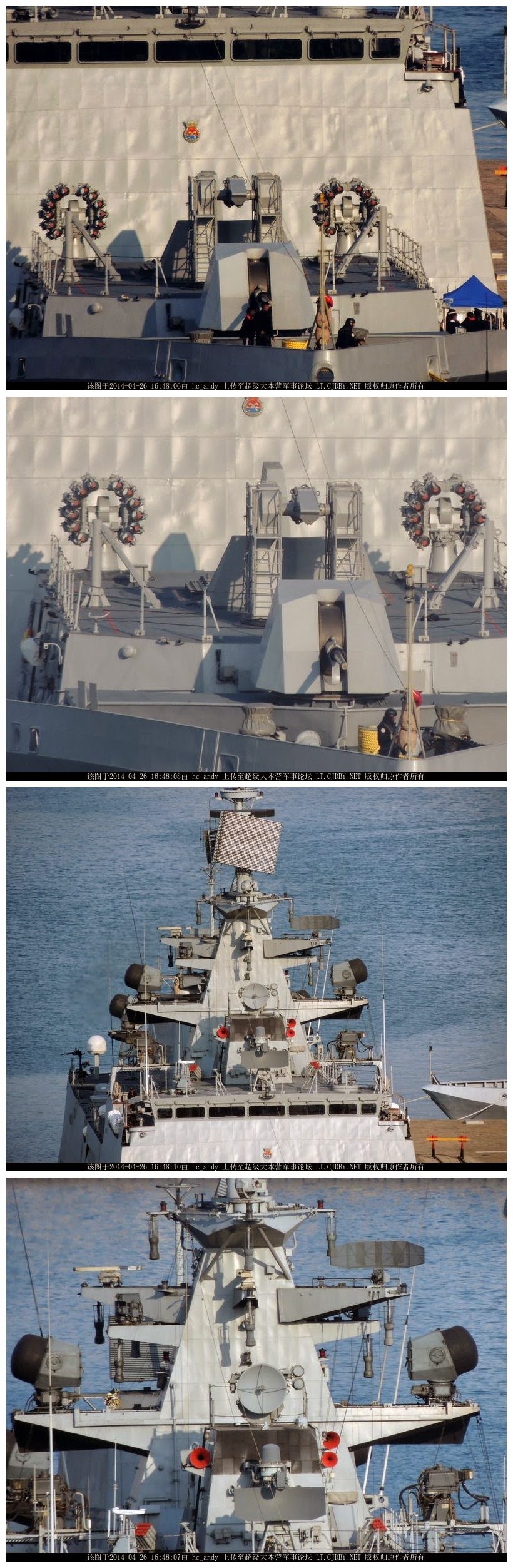

more photos of the kolkata
