Chinese Unmanned Underwater Vehicles (UUV)

no_name

Colonel
The scale is 1:38 so maybe someone can get a rough estimate of the actual size of that thing. I feel the scale model is easily over 1m long.


by78

General

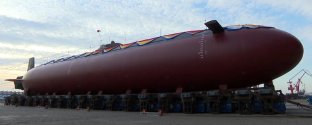

More images of that new UUV.





tphuang

Lieutenant General
Staff member
Super Moderator
VIP Professional
Registered Member
I would've expected a larger spherical shaped sonar in the front.

Other than that, pretty much what's expected of XLUUV.

for a 300t UUV, if 40% of weight is battery. 120t x 250kWh/t = 30MWh

If they can get SSB in there in a few years. 120t x 500kWh/t = 60MWh

IIRC, the hotel load of AIP is about 200kW for hotel load + 4 knots speed. Since UUV is much smaller and doesn't need to support crews, it would be much less than that). Maybe 30 to 40 kW?


ACuriousPLAFan

Brigadier
Registered Member
Specifications of the mini-sail (L/XL)UUV listed on a brochure. Posted by @sugar_wsnbn on Twitter.

3 variants available: A, B and C.
Length: 38-43 meters
Displacement: 380-450 tons
Diving Depth: 300-450 meters
Maximum Speed: 20 knots
Crusing Speed: 8 knots
Underwater Continuous Range: 1000-3000 nautical miles
Total Range: ~10000 nautical miles
Power: 400kW LFP battery + Diesel electric generator

Variant A: Surveillance/Attack Type unmanned submarine, can carry 8-12 torpedoes or missiles.
Variant B: Transport/Special Operations Type Unmanned Submarine, can carry 6-8 divers and special operations equipment.
Variant C: Transport/Blockade Type Unmanned Submarine, can carry 8-12 mines or small UUVs or 4 large UUVs.

Main combat communications link: SATCOM (Ka/Ku band) with land/sea control center


@tphuang @BoraTas FYA.

Last edited:

no_name

Colonel
Specifications of the mini-sail (L/XL)UUV listed on a brochure. Posted by @sugar_wsnbn on Twitter.

3 variants available: A, B and C.
Length: 38-43 meters
Displacement: 380-450 tons
Diving Depth: 300-450 meters
Maximum Speed: 20 knots
Crusing Speed: 8 knots
Underwater Continuous Range: 1000-3000 nautical miles
Total Range: ~10000 nautical miles
Power: 400kW LFP battery + Diesel electric generator

Variant A: Surveillance/Attack Type unmanned submarine, can carry 8-12 torpedoes or missiles.
Variant B: Transport/Special Operations Type Unmanned Submarine, can carry 6-8 divers and special operations equipment.
Variant C: Transport/Blockade Type Unmanned Submarine, can carry 8-12 mines or small UUVs or 4 large UUVs.

Main combat communications link: SATCOM (Ka/Ku band) with land/sea control center

View attachment 139268
View attachment 139269

@tphuang @BoraTas FYA.
Wonder if North Korea would be interested by this sub, irrespective of whether it's available for sale to them.
