052C/052D Class Destroyers

xyqq

Junior Member
Registered Member
Cool pic by by78 at the PLAN Fleet Supply Ship thread. Shows what's likely to be 175 refueling from 967 AOE, which is a Type 901.

Its a cool scene as it is sharp enough to notice the details at the back of 175. You can see the door for the VDS, with a small port for the TAS. There is another port to the left that is for the towed anti-torpedo decoy.

View attachment 69404

The door above the right-side hole opened on DDG 171's back:


Last edited:
  • Like
Reactions: W20

AndrewS

Brigadier
Registered Member
Yes, very impressive. However, the Arleigh Burkes have had a towed array sonar since the first FLI variant. The newer ships got an updated one, which is quite interesting as its both a passive and active sensor. Look up TB-37U MFTA

I notice that the production of the first TB-37U MFTA is due by June 2021.

But suppose the Chinese Navy starts deploying their own version before this?


davidau

Senior Member
Registered Member
Considering the 052D is equipped with a universal VLS that's specifically designed to be the PLAN's standard VLS, and considering the 054A's older, much smaller VLS is equipped with Yu-8, I would say it's very much just a matter of time for the 052D (and 055) to be integrated with a VL ASROC type weapon, if it isn't already.


If anything, the fact that we have only seen HHQ-9 and YJ-18 visibly photographed as being fired from the universal VLS on 052D and 055 is very, very suspicious.
If I were the PLAN, I wouldn't exactly be tripping over myself to reveal whatever new missiles that have been integrated onto my ships, especially given it's quite easy to keep it close to their chest as we can't see what payloads are in a VLS once it's loaded with a canister and we can't tell what kind of weapon is inside a canister if we happened to see a canister to begin with.
I believe the PLAN and other PLA services would keep their new missiles/weapons very close to the chest. What you see now has been/would be superseded by a later version.


Tam

Brigadier
Registered Member
I notice that the production of the first TB-37U MFTA is due by June 2021.

But suppose the Chinese Navy starts deploying their own version before this?

Been around with the Type 311 sonar which is the improved towed array plus VDS. Since this was already introduced sometime ago, like around the second batch of 054A, the introduction of the 052D and the 056A, this itself should already have some batch improvements since its introduction.


Tam

Brigadier
Registered Member
The door above the right-side hole opened on DDG 171's back:

View attachment 69774

Not sure what the square holes are above the round holes, which is for the mooring ropes.

The VDS is the door next to those two holes and the TAS is the hole next to the VDS door. The square hole to the the most left near the other hole is for a towed decoy.

That should not be 171 which is a 052C. Its a 052D with the HQ-10 and the center aligned hanger. The rounded capped ESMs make this a second batch 052D, so this is likely to be 131 Taiyuan. The Sovremenny leading the formation gives the group away as being from the Third Destroyer Division, and its either 138 or 139 because of the radar above the hanger, which makes it a 956EM, modified variant. The 054A shown is of the final batch based on the shape of its rear SATCOM, which I believe the Third Destroyer Division has one which should be 601.

You probably mistyped 171 instead of 131. Should be part of the same series of pictures you previously posted.


Tam

Brigadier
Registered Member
The SQR-19 was removed with Flight IIA. It seems that AN/SQR-20 /MTFA is not a class-wide upgrade but only for some deployed units. But yeah you're right the USN isn't left empty-handed.

It might just be a question of ressources, time or shedule with new weapon systems being introduced in the PLAN arsenal. Also after all, if the PLAN was really interested in the integration of the Yu-8 and alike ont the type 052D platform, they would have probably already deployed it as early as YJ-18 or HHQ-9.

Speaking of that, follong Henri-k publications on his site, we've seen quite ''''a lot'''' of different, unidentified missiles being fired from type 052D ships.

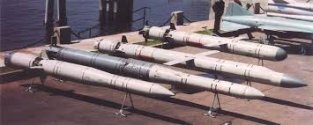

Most likely ASROC for the 052D is a copy of the Russian 91RE2 missile rather than the YU-8. YU-8 is a bit small for the U-VLS, it will be like a kid fitting his dad's pants. I mean you can fit it, but it won't be using the U-VLS full potential. This is a member of the KLUB family.


download (6).jpeg

That would be the shortest one on the far left. The longer one next to it is for submarine launch. Next to that is the antiship missile, which is where the YJ-18 is derived, and next to that is the cruise missile. China replicating the entire Klub line on its own.

The difference is that instead of using the Russian torpedo, they would be using the new light torpedo from the YU-11 instead. This torpedo probably about three meters length. I should expect the range to be greater than the YU-8 because of the size as the YU-8 is said to be around 30km, while the Russian number is about 50km. A lighter Chinese torpedo can extend the range a bit. The missile will also be supersonic, while the YU-8 is subsonic, so the missile will reach point A to B faster, which leaves the opposing submarine less time to escape. The shorter Klubs are over 6 meters in length, so these will fit the 7 meter U-VLS. So the ASROC will displace HHQ-9s instead of YJ-18.

Last edited:

by78

General
The door above the right-side hole opened on DDG 171's back:

View attachment 69774

Did you just make a post about an open door? A freakin' open door?! This is almost as ridiculous as making a post about a puddle.

Seriously, what in the world are you doing?!

Stop clogging this thread and others with your utterly useless trivia and stupid observations that are a complete waste of time and precious screen real estate.

Seriously, why are you here? To parade your below-average double-digit IQ and waste screen space?

Be considerate of the wider community and JUST STOP!

:mad:

Last edited:

KampfAlwin

Senior Member
Registered Member
Did you just make a post about an open door? A freakin' open door?! This is almost as ridiculous as making a post about a puddle.

Seriously, what in the world are you doing?!

Stop clogging this thread and others with your utterly useless trivia and stupid observations that are a complete waste of time and precious screen real estate.

Seriously, why are you here? To parade your below-average double-digit IQ and waste screen space?

Be considerate of the wider community and JUST STOP!

:mad:
Um... please don't insult other members by suggesting that they're 'low IQ'

It's just a photo dude, he posted lots of ship photos and I appreciate it, you should too( I appreciate your photos also). Don't throw a tantrum over it, this is the internet.
If you don't like the descriptions associated, just ignore it and look at the photos only.


nlalyst

Junior Member
Registered Member
Did you just make a post about an open door? A freakin' open door?! This is almost as ridiculous as making a post about a puddle.

Seriously, what in the world are you doing?!

Stop clogging this thread and others with your utterly useless trivia and stupid observations that are a complete waste of time and precious screen real estate.

Seriously, why are you here? To parade your below-average double-digit IQ and waste screen space?

Be considerate of the wider community and JUST STOP!

:mad:
This is completely unacceptable behavior. I reported you to the moderators.


Blitzo

Lieutenant General
Staff member
Super Moderator
Registered Member
Did you just make a post about an open door? A freakin' open door?! This is almost as ridiculous as making a post about a puddle.

Seriously, what in the world are you doing?!

Stop clogging this thread and others with your utterly useless trivia and stupid observations that are a complete waste of time and precious screen real estate.

Seriously, why are you here? To parade your below-average double-digit IQ and waste screen space?

Be considerate of the wider community and JUST STOP!

:mad:

I think his post #4288 was made because it was part of the same set as what he posted immediately prior in post #4287, and for each of those pictures he has a description. The accuracy of those descriptions leaves something to be desired, but I think the effort is there to provide a commentary.

I don't think his post of his pictures were unreasonable, and while I agree with you that there are many members here whose posts are frankly nonsensical and of poor quality and lowers the quality of the forum, I don't think his post is unreasonable.
More importantly, we still expect a minimum standard of etiquette here regardless of how much you believe someone may be contributing poorly to the forum, and making personal attacks on someone and asking them to stop posting is beyond the scope of what is acceptable here.


Given the quality of your contributions and your receptiveness to past statements, this will be verbal warning this time, but in future refrain from making remarks as to the quality of other people's posts. If you feel particularly that the relevance of someone's post is off topic or clogging up the forum, you can message a moderator in future.
