052C/052D Class Destroyers

T

Tam

Brigadier
Registered Member
Kind of disappointing they would bother to pixelate that part of the picture when there is nothing to be expected that is bleeding edge about the radar.

T

Totoro

Major
VIP Professional
SinoSoldier said:

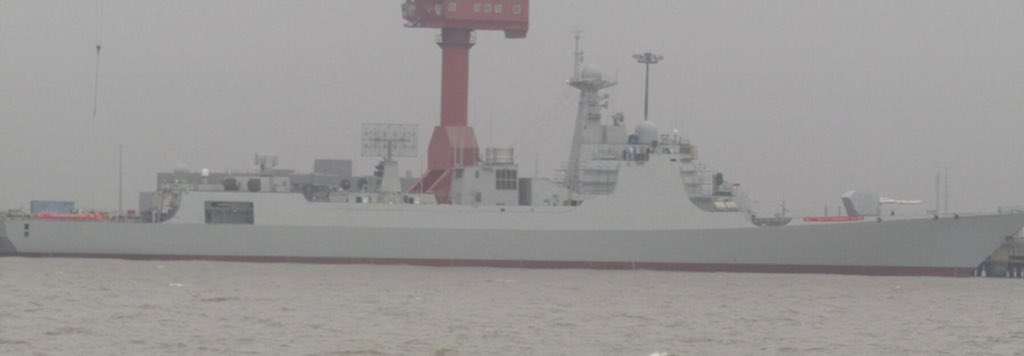

Seems that the 14th 052D, or the first lengthened 052D unit, and onward have replaced their H/LJQ-517B radars with a Chinese counterpart to the SMART-L.
Click to expand...
If true, they're trading very low frequency advantage for a more modern setup capable of much greater resolution and providing altitude data as well.

It remains to be seen if the radar in question is indeed going to be an L band one. I for one wouldn't be surprised if it's actually UHF. Seems like a better complementary to main S band arrays.

M

Mirabo

Junior Member
Registered Member
I didn't realize a 052D could launch missiles so rapidly. Supposedly some variant of the HQ-9.


T

Tam

Brigadier
Registered Member
It appears to be a larger Yagi array, with like before, 2 x 8 elements. The antenna design of each Yagi element has changed. Higgle's post on the HQ-9 launching also provides a convenient picture of the current Yagi array for comparison. Far from a SMART-L and working on the L-band, this means the radar still works on the metric range.

Hyperwarp

Hyperwarp

Captain
I count 12 dots. From all the Chinese radars I could find, there appears to be at least 4 ground-based radars with a similar appearance. Two them are passive systems namely the JY-50 and the YLC-29. So I think we can discount them. Others are the 2D Surveillance radar HK-JM2 and an unknown 3D surveillance radar (Does anyone know the designation?).

What do you guys think?

New Radar on the 052DL


* SURVEILLANCE RADARS -

HK-JM2


Unknown 3D surveillance radar


*PASSIVE SYSTEMS -

YLC-29


JY-50
